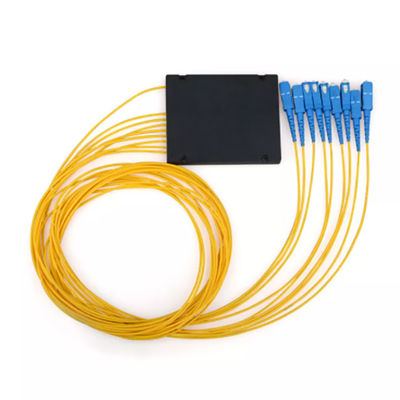

SC FC UPC APC Splitters and Dividers for Wired LAN Networks 2mm Casket Type Fiber Optic

SC FC UPC APC Splitters and Dividers for Wired LAN Networks 2mm Casket Type Fiber Optic
SC FC UPC APC Splitters and Dividers for Wired LAN Networks 2mm Casket Type Fiber Optic SC FC UPC APC Splitters and Dividers for Wired LAN Networks 2mm Casket Type Fiber Optic SC FC UPC APC Splitters and Dividers for Wired LAN Networks 2mm Casket Type Fiber Optic SC FC UPC APC Splitters and Dividers for Wired LAN Networks 2mm Casket Type Fiber Optic SC FC UPC APC Splitters and Dividers for Wired LAN Networks 2mm Casket Type Fiber Optic SC FC UPC APC Splitters and Dividers for Wired LAN Networks 2mm Casket Type Fiber Optic

Large Image :  SC FC UPC APC Splitters and Dividers for Wired LAN Networks 2mm Casket Type Fiber Optic

Product Details:
Place of Origin: Hangzhou China
Brand Name: Fiberspace
Model Number: cassette type
Payment & Shipping Terms:
Minimum Order Quantity: 50 units
Price: $2.35 - $32.00/units
Contact Now

SC FC UPC APC Splitters and Dividers for Wired LAN Networks 2mm Casket Type Fiber Optic

Description
Type: Splitters Use: FTTH
Warranty Time: 5 Years Network: Wired LAN
Connector Type: SC FC Length: Customizable
Fiber Type: G652D /G657A1 Model: 1*2 1*4 1*8 1*16 1*32 1*64

Products Description
• Low insertion loss,high return loss • Excellent Temperature stability • Good repeatability and exchangeability • Excellent mechanical endurance • Strict curing time and temperature control • Strict testing standards and methods for quality • Environment protection (ROHS Compliance) • The fiber optical patch cord can be customized according to customers'specific requirements (Customized Connector/Length/package.) • 100% new raw material and well quality control ensure the best life time.

Product Paramenters
Split Ratio
1:2
1:4
1：8
1：12
1：16
1：24
1：32
1：64
Insertion Loss (dB) Max
4.2
7.8
10.9
12.9
13.9
15.5
17.2
20.9
Loss Uniformity (dB) Max
0.6
0.7
1.0
1.2
1.2
1.5
1.5
2.0
PDL(dB) Max
0.3
Return Loss (dB) Min
≥ 55 dB (APC) ; ≥ 50 dB (PC / UPC)
Directivity (dB) Min
55
Splite Ratio
2:2
2:4
2:8
2:12
2:16
2:24
2:32
2:64
Insertion Loss (dB) Max
4.4
8.0
11.2
13.2
14.2
15.8
17.5
21.2
Loss Uniformity (dB) Max
0.6
0.7
1.0
1.2
1.2
1.5
1.5
2.0
PDL(dB) Max
0.3
Return Loss (dB) Min
≥ 55 dB (APC) ; ≥ 50 dB (PC / UPC)
Directivity (dB) Min
55
SC FC UPC APC Splitters and Dividers for Wired LAN Networks 2mm Casket Type Fiber Optic 0
If you have special needs of customized products, please contact us.
