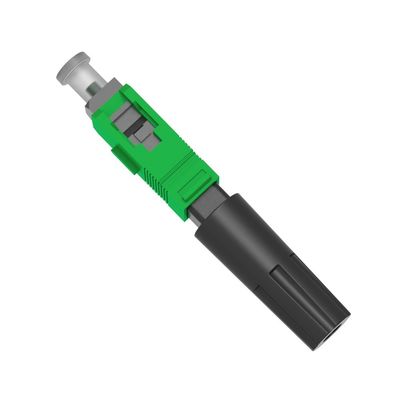

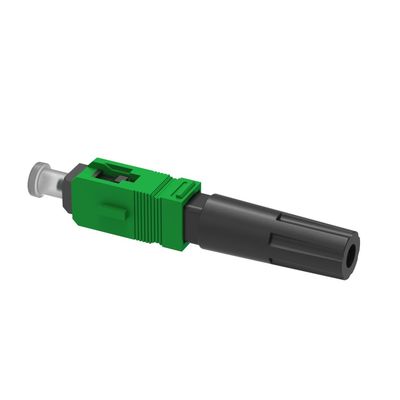

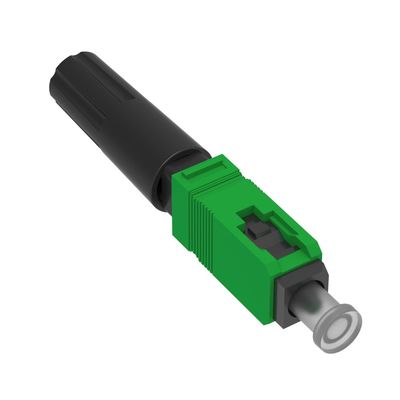

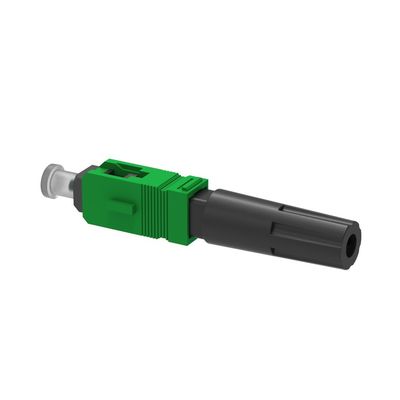

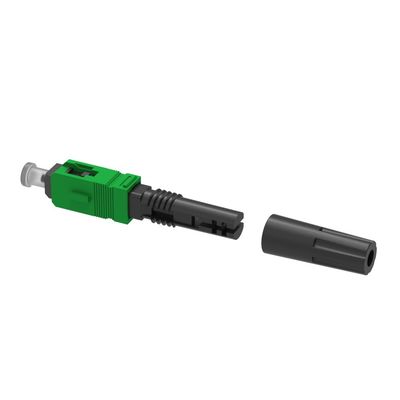

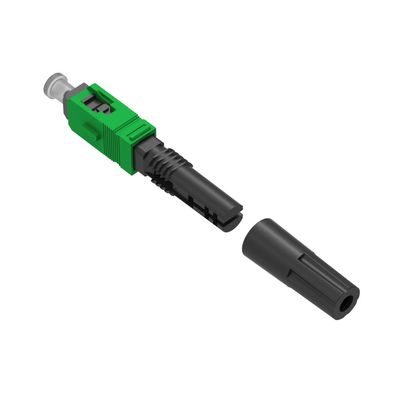

Fast Connector Simplex SC APC Fiber Optic Drop Cable with UPC Polished Field Assembly

Large Image : Fast Connector Simplex SC APC Fiber Optic Drop Cable with UPC Polished Field Assembly

Product Details:

Place of Origin:	Hangzhou China
Brand Name:	Fiberspace
Model Number:	FSP-SMFC-05-SCAPC

Payment & Shipping Terms:

Minimum Order Quantity:	100 units
Price:	$0.30/units 100-999 units

Contact Now

Fast Connector Simplex SC APC Fiber Optic Drop Cable with UPC Polished Field Assembly

Description

Type:	Fast Connector	Use:	FTTH
Warranty Time:	5 Years	Network:	Wired LAN
Insertion Loss:	AVG≤0.3dB,MAX≤0.5dB	Return Loss:	UPC≥50dB,APC≥55dB
Working Temperature:	-40~+85℃	Tensile Strength:	≥30N/2min
Reuse Times:	≥10times

Products Description

• Suitable for FTTx butterfly type cable(both square and circle shape are available).

• Low insertion loss • Easy open and opet and close. • Preset fiber and matching-fluid design ensure the performance. • Clamping mechanism ensure long-term reliable connection . • Compact size, easy to operate, durable.

Product Paramenters

Connection Type	SC
Polishing Mode	APC
Cable Fixing Method	Screwing-Up Knob
Cable Diameter	2×3 mm
Insertion Loss	≤ 0.3 dB
Return Loss	≥ 50 dB (UPC / PC) ≥ 55 dB(APC)
Tensile Strength	≥ 30N
Operating temperature	-40℃ ~ 75℃
Storage temperature	-40℃ ~ 85℃

If you have special needs of customized products, please contact us.
