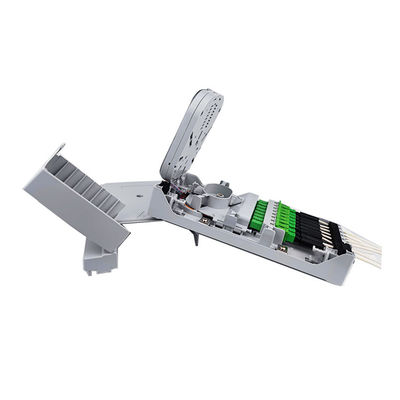

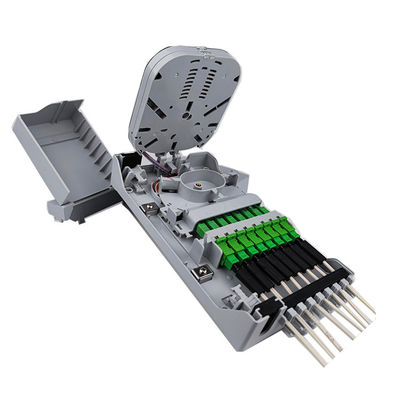

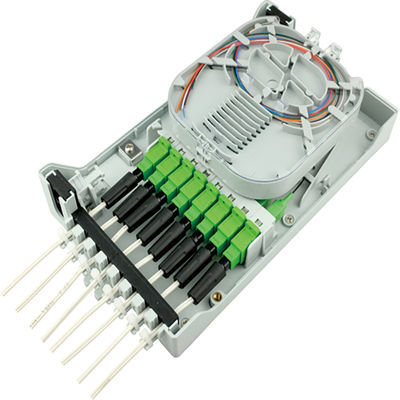

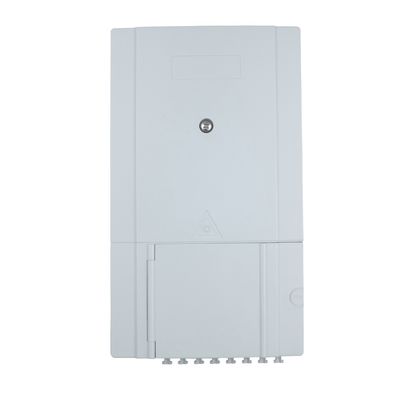

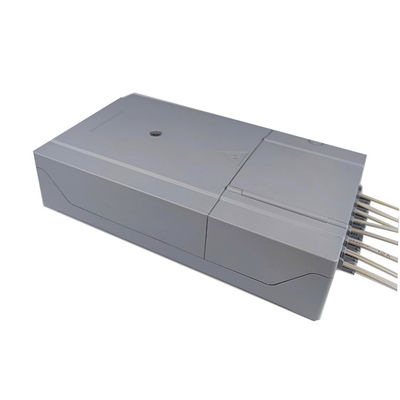

PC ABS Material Used Network ODN FTTH IP65 Outdoor 8 Cores Fiber Optic Termination Box

PC ABS Material Used Network ODN FTTH IP65 Outdoor 8 Cores Fiber Optic Termination Box
PC ABS Material Used Network ODN FTTH IP65 Outdoor 8 Cores Fiber Optic Termination Box PC ABS Material Used Network ODN FTTH IP65 Outdoor 8 Cores Fiber Optic Termination Box PC ABS Material Used Network ODN FTTH IP65 Outdoor 8 Cores Fiber Optic Termination Box PC ABS Material Used Network ODN FTTH IP65 Outdoor 8 Cores Fiber Optic Termination Box PC ABS Material Used Network ODN FTTH IP65 Outdoor 8 Cores Fiber Optic Termination Box

Large Image :  PC ABS Material Used Network ODN FTTH IP65 Outdoor 8 Cores Fiber Optic Termination Box

Product Details:
Place of Origin: Hangzhou China
Brand Name: Fiberspace
Model Number: FSP-P-08-B
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: $4.00 - $6.00/pieces
Contact Now

PC ABS Material Used Network ODN FTTH IP65 Outdoor 8 Cores Fiber Optic Termination Box

Description
Type: Fiber Optic Distribution Box Use: FTTH
Warranty Time: 5 Years Network: ODN
Dimension: 235*126*52mm Material: PC+ABS
Color: Gray Installation Method: Wall Mount

Products Description
1. For connection and distribution of fiber optic terminals.
2. Double doors structure, each functional area is independent of each other.
3. Adaptor can be rotated for easy operation.
4. 2 incoming cable port ,cables can be uncut connected ,compatible with cables with maximum diameter of 10 mm.
5. 8 outcoming drop cable port ,suitable for connection of fast connector.

Product Paramenters
Model
FSP-P-08-B
Size
H×W×D = 235x126x52 (MM)
Material
PC+ABS
IP Grand
White / Gray / Black
Splice Capacity
16 Cores
Adapter Port
8 Pcs
Splice Capacity
1：8 Mini PLC
Installation Method
Wall / Pole-mounted

If you have special needs of customized products, please contact us.
