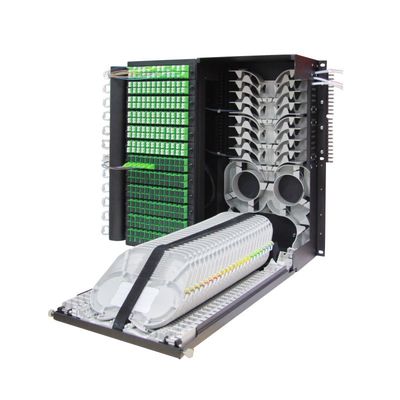

576 Cores High Density Flip Down 19 Inch Optic Fiber Patch Panel for Wired LAN Network

Large Image : 576 Cores High Density Flip Down 19 Inch Optic Fiber Patch Panel for Wired LAN Network

Product Details:

Place of Origin:	Hangzhou China
Brand Name:	Fiberspace
Model Number:	FSP-S8-576A

Payment & Shipping Terms:

Minimum Order Quantity:	10 units
Price:	$94.00 - $180.00/units
Packaging Details:	carton package
Supply Ability:	1000 Unit/Units per Month

Contact Now

576 Cores High Density Flip Down 19 Inch Optic Fiber Patch Panel for Wired LAN Network

Description

Type:	Sub Optic Distribution Frame	Use:	FTTX
Warranty Time:	3 Years	Network:	Wired LAN
Color:	Gray (Default RAL 7045)	Application:	Data Center
Material:	Cold Rolled Steel Sheet	Connector Type:	LC Duplex
Dimensions:	470482190mm	Port:	Shanghai/Ningbo

Products Description

1. The Combi unit consists of two main parts:patching unit and splicing unit. 2. Patching unit and splicing unit could flexible combination, left-right interchangeable installation. 3. Reasonable guiding line system to ensure the fiber diameter ≥ 40mm. 4. Compacted design with high density.

Product Paramenters

Model	FSP-S8-576A
Size	H×W×D = 470×482×190 (MM)
Material	Cold Rolled Steel
Color	Gray (Default RAL 7045) / Black
Splice Capacity	576 Cores
Adapter Type	SC / LC
Adaptor Capacity	288~576 Ports
Installation Method	Standard 19" Rack Mount

If you have special needs of customized requirements, please contact us.
