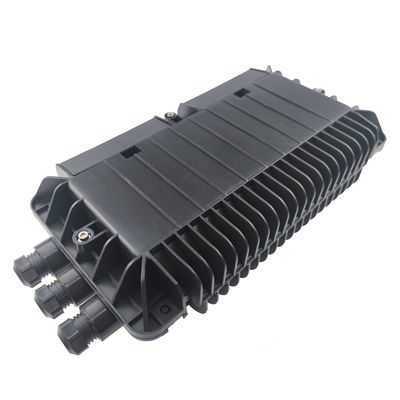

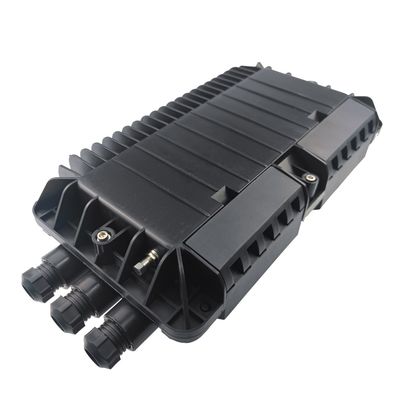

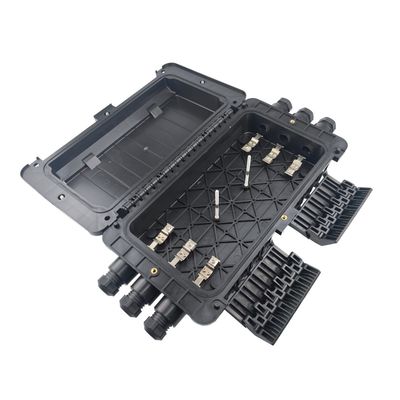

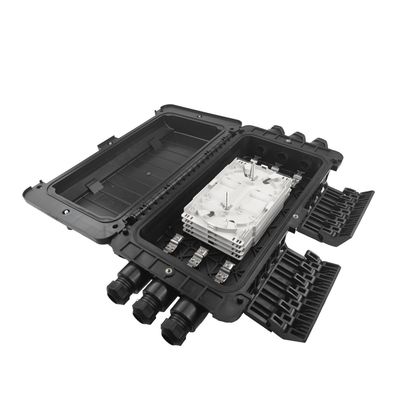

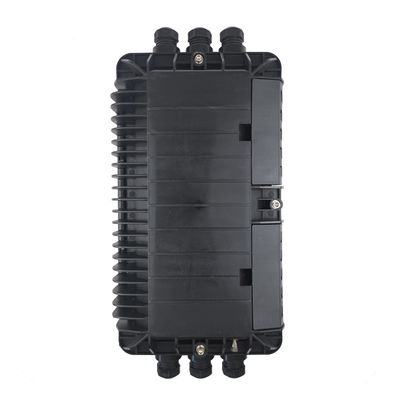

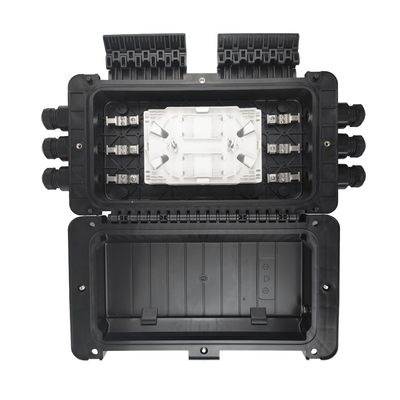

96 Cores Waterproof FTTH Network Fiber Optical Cable Access Terminal Closure with 5 Time

96 Cores Waterproof FTTH Network Fiber Optical Cable Access Terminal Closure with 5 Time
96 Cores Waterproof FTTH Network Fiber Optical Cable Access Terminal Closure with 5 Time 96 Cores Waterproof FTTH Network Fiber Optical Cable Access Terminal Closure with 5 Time 96 Cores Waterproof FTTH Network Fiber Optical Cable Access Terminal Closure with 5 Time 96 Cores Waterproof FTTH Network Fiber Optical Cable Access Terminal Closure with 5 Time 96 Cores Waterproof FTTH Network Fiber Optical Cable Access Terminal Closure with 5 Time 96 Cores Waterproof FTTH Network Fiber Optical Cable Access Terminal Closure with 5 Time

Large Image :  96 Cores Waterproof FTTH Network Fiber Optical Cable Access Terminal Closure with 5 Time

Product Details:
Place of Origin: Hangzhou China
Brand Name: Fiebrspace
Model Number: FSP-CH-02
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: $24.00 - $26.00/pieces
Contact Now

96 Cores Waterproof FTTH Network Fiber Optical Cable Access Terminal Closure with 5 Time

Description
Type: Fiber Fusion Splicer Use: FTTX
Warranty Time: 5 Years Network: None
Material: PP/PC Color: Black
Splicing Capacity: 96 Cores Size: 400x220x115

Products Description
1. 3 Ports inlets and 3 Ports outlets. 2. Support cables with no more than 18mm diameter. 3. Buckle structure, easy to open and reliable to close, IP68. 4. Wall mounting, aerial, duct mounting, underground. 5. Meets all the industry standard performance tests from YD/T 814.1-2013 Closure for Optical Fiber Cables (ICS 33.180.99), and strict tests like IK10 and TCT (*10).

Product Paramenters
Model
FSP-CH-02
Environment
Aerial, direct buried, pipelined, wall mounting, manhole
Splice Capacity
96 Cores
Splice Trays
4 Pcs
Cable entry ports
6 Ports (Max Φ18mm )
Protection Level
IP68
Color
Black
Body Material
PP
Dimension
H × W × D = 400×220×115 mm
Sealing Method
Mechanical Seal

If you have special needs of customized products, please contact us.

96 Cores Waterproof FTTH Network Fiber Optical Cable Access Terminal Closure with 5 Time 0
96 Cores Waterproof FTTH Network Fiber Optical Cable Access Terminal Closure with 5 Time 1
96 Cores Waterproof FTTH Network Fiber Optical Cable Access Terminal Closure with 5 Time 2
Related Products
96 Cores Waterproof FTTH Network Fiber Optical Cable Access Terminal Closure with 5 Time 3
96 Cores Waterproof FTTH Network Fiber Optical Cable Access Terminal Closure with 5 Time 4
96 Cores Waterproof FTTH Network Fiber Optical Cable Access Terminal Closure with 5 Time 5
96 Cores Waterproof FTTH Network Fiber Optical Cable Access Terminal Closure with 5 Time 6
96 Cores Waterproof FTTH Network Fiber Optical Cable Access Terminal Closure with 5 Time 7
96 Cores Waterproof FTTH Network Fiber Optical Cable Access Terminal Closure with 5 Time 8
96 Cores Waterproof FTTH Network Fiber Optical Cable Access Terminal Closure with 5 Time 9
96 Cores Waterproof FTTH Network Fiber Optical Cable Access Terminal Closure with 5 Time 10
Certifications
96 Cores Waterproof FTTH Network Fiber Optical Cable Access Terminal Closure with 5 Time 11
Company Introduction
96 Cores Waterproof FTTH Network Fiber Optical Cable Access Terminal Closure with 5 Time 12
About Yuhua Tech Hangzhou Yuhua Technology Co., Ltd. is a high-tech enterprise founded in 2001, during the rapid development of China's FTTH construction it mainly provides solutions and products for domestic ODN construction, specialized in manufacturing ODN devices, such as Fiber adapters, Pigtails, Patchcords, ODB, ODF, and FDC, etc, especially is the largest manufacturer of FDC in the domestic market. With the development of many years formed an integrated enterprise possessing plastic injection production line, SMC shell production line, sheet metal production line, fiber polishing production line, etc, even covered all the processes of ODN products.Now it has a workshop area of about 27,000 square meters, a technical development team of more than 30 people, and more than 200 workers. Hangzhou Fiberspace Import & Export Co., Ltd is a subsidiary of Yuhua Tech, founded in 2020, possessing an experienced R&D team and Marketing team, Focus on providing cost-effective ODN product solutions for global users and bringing Yuhua's products to the world with the brand "Fiberspace". Welcome to our website： http://www.fiberspace.com.cn

FAQ Q:  Are you a manufacturer or trading company? A: We are an Origin factory. Like we mention in the company introduction ,we have two companies ,Yuhua tech & Fiberspace Import &Export,Fiberspace is a subsidiary of Yuhua tech(has been certified by Alibaba),focus on providing cost-effective ODN product solutions for global users and bringing Yuhua's products to the world with the brand "Fiberspace".
Q: Where is your factory located? How can I visit it? A: Our factory is located in No.9 Huan an road, Lishan Town, Fuyang District, Hangzhou City, Zhejiang Province. 40 Minutes by car from Hangzhou Airport.
Q: How can I get the sample? What's the lead time? A: By DHL/UPS/FedEx express. Samples lead time is 7-14 days.
Q: How does your factory control product quality? A: ISO9001 Certificated, independent quality control team with 20 inspectors in our factory. The third-party certificated and factory audit accepted.  Third-party quality control accepted.
Q: Do you provide ODM/OEM service? A: OEM/ODM is welcome, From the concept to finished goods, we have our own designer, do all in the factory.
