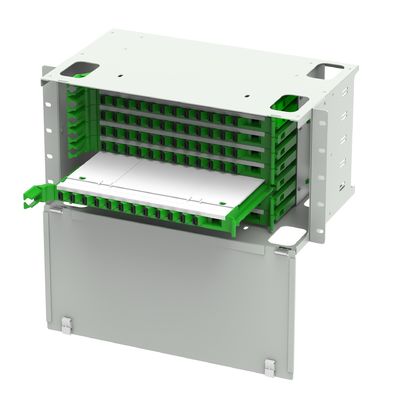

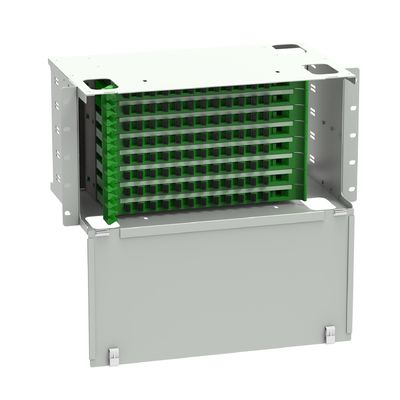

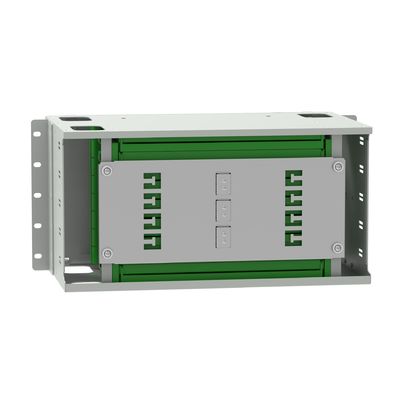

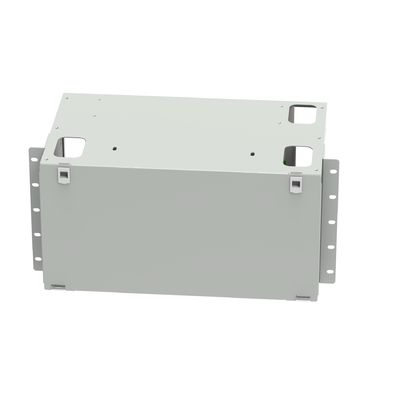

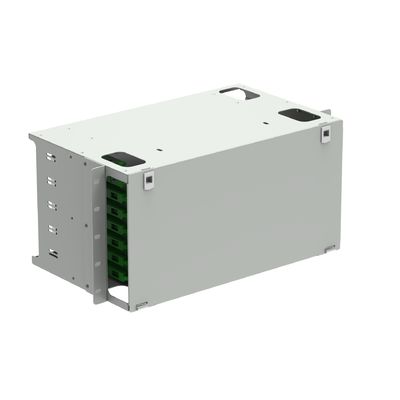

96 Ports SC Type Optical Fiber Distribution Patch Panel for ODN Network Data Center

96 Ports SC Type Optical Fiber Distribution Patch Panel for ODN Network Data Center
96 Ports SC Type Optical Fiber Distribution Patch Panel for ODN Network Data Center 96 Ports SC Type Optical Fiber Distribution Patch Panel for ODN Network Data Center 96 Ports SC Type Optical Fiber Distribution Patch Panel for ODN Network Data Center 96 Ports SC Type Optical Fiber Distribution Patch Panel for ODN Network Data Center 96 Ports SC Type Optical Fiber Distribution Patch Panel for ODN Network Data Center 96 Ports SC Type Optical Fiber Distribution Patch Panel for ODN Network Data Center

Large Image :  96 Ports SC Type Optical Fiber Distribution Patch Panel for ODN Network Data Center

Product Details:
Place of Origin: Hangzhou China
Brand Name: Fiberspace
Model Number: FSP-S6-B-96-SC
Payment & Shipping Terms:
Minimum Order Quantity: 100 units
Price: $12.00 - $80.00/units
Contact Now

96 Ports SC Type Optical Fiber Distribution Patch Panel for ODN Network Data Center

Description
Type: Sub Optic Distribution Frame Use: FTTX
Warranty Time: 5 Years Network: ODN
Application: Data Center

Products Description

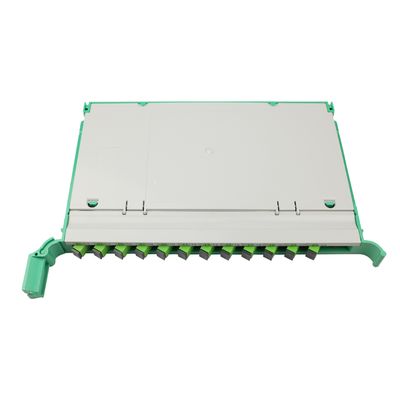

1. Compatible with industry standard equipment frame.Suitable for 19" to 23" Rack with proper interchangeable mounting bracket . 2. Removable front door for allowing easy access to patch and fiber trays. 3. The tray is compatible with the installation of a variety of adapters (SC,FC, E2000 & etc).The Splice and patch are in one tray. 4. Double layer tray design to provide space for pigtail coiling. 5. Individual slide out splice organizer trays to provide easy access. 6. The tray provides maximum protection of optical components.
Product Paramenters
Model
FSP-S6 Series
Size
12 Port: H×W×D = 44 × 482 × 255(MM)
24 Port: H×W×D = 70 × 482 × 255(MM)
48 Port: H×W×D = 122 × 482 × 255(MM)
72 Port: H×W×D = 174 × 482 × 255(MM)
96 Port: H×W×D = 266 × 482 × 255(MM)
14 Port: H×W×D = 330 × 482 × 255(MM)
Material
Cold Rolled Steel
Color
Gray (Default  RAL 7035)
Splice Capacity
12~144 Cores
Adapter Type
ST / FC / SC / LC / E2K etc.
Adaptor Capacity
12~144 Ports
Installation Method
Standard 19" Rack Mount

If you have special needs of customized products, please contact us.

96 Ports SC Type Optical Fiber Distribution Patch Panel for ODN Network Data Center 0
96 Ports SC Type Optical Fiber Distribution Patch Panel for ODN Network Data Center 1
96 Ports SC Type Optical Fiber Distribution Patch Panel for ODN Network Data Center 2
96 Ports SC Type Optical Fiber Distribution Patch Panel for ODN Network Data Center 3
96 Ports SC Type Optical Fiber Distribution Patch Panel for ODN Network Data Center 4
96 Ports SC Type Optical Fiber Distribution Patch Panel for ODN Network Data Center 5
96 Ports SC Type Optical Fiber Distribution Patch Panel for ODN Network Data Center 6
Related Products
96 Ports SC Type Optical Fiber Distribution Patch Panel for ODN Network Data Center 7
96 Ports SC Type Optical Fiber Distribution Patch Panel for ODN Network Data Center 8
96 Ports SC Type Optical Fiber Distribution Patch Panel for ODN Network Data Center 9
96 Ports SC Type Optical Fiber Distribution Patch Panel for ODN Network Data Center 10
96 Ports SC Type Optical Fiber Distribution Patch Panel for ODN Network Data Center 11
96 Ports SC Type Optical Fiber Distribution Patch Panel for ODN Network Data Center 12
96 Ports SC Type Optical Fiber Distribution Patch Panel for ODN Network Data Center 13
96 Ports SC Type Optical Fiber Distribution Patch Panel for ODN Network Data Center 14
Certifications
96 Ports SC Type Optical Fiber Distribution Patch Panel for ODN Network Data Center 15
Company Introduction
96 Ports SC Type Optical Fiber Distribution Patch Panel for ODN Network Data Center 16
About Yuhua Tech Hangzhou Yuhua Technology Co., Ltd. is a high-tech enterprise founded in 2001, during the rapid development of China's FTTH construction it mainly provides solutions and products for domestic ODN construction, specialized in manufacturing ODN devices, such as Fiber adapters, Pigtails, Patchcords, ODB, ODF, and FDC, etc, especially is the largest manufacturer of FDC in the domestic market. With the development of many years formed an integrated enterprise possessing plastic injection production line, SMC shell production line, sheet metal production line, fiber polishing production line, etc, even covered all the processes of ODN products.Now it has a workshop area of about 27,000 square meters, a technical development team of more than 30 people, and more than 200 workers. Hangzhou Fiberspace Import & Export Co., Ltd is a subsidiary of Yuhua Tech, founded in 2020, possessing an experienced R&D team and Marketing team, Focus on providing cost-effective ODN product solutions for global users and bringing Yuhua's products to the world with the brand "Fiberspace". Welcome to our website： http://www.fiberspace.com.cn

FAQ Q:  Are you a manufacturer or trading company? A: We are an Origin factory. Like we mention in the company introduction ,we have two companies ,Yuhua tech & Fiberspace Import &Export,Fiberspace is a subsidiary of Yuhua tech(has been certified by Alibaba),focus on providing cost-effective ODN product solutions for global users and bringing Yuhua's products to the world with the brand "Fiberspace".
Q: Where is your factory located? How can I visit it? A: Our factory is located in No.9 Huan an road, Lishan Town, Fuyang District, Hangzhou City, Zhejiang Province. 40 Minutes by car from Hangzhou Airport.
Q: How can I get the sample? What's the lead time? A: By DHL/UPS/FedEx express. Samples lead time is 7-14 days.
Q: How does your factory control product quality? A: ISO9001 Certificated, independent quality control team with 20 inspectors in our factory. The third-party certificated and factory audit accepted.  Third-party quality control accepted.
Q: Do you provide ODM/OEM service? A: OEM/ODM is welcome, From the concept to finished goods, we have our own designer, do all in the factory.
