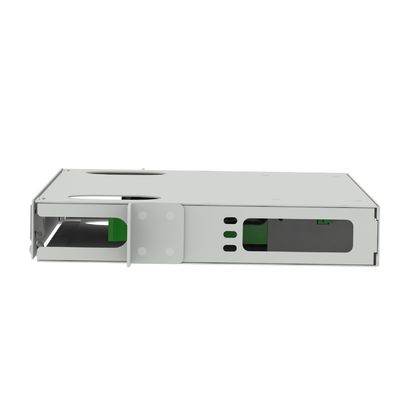

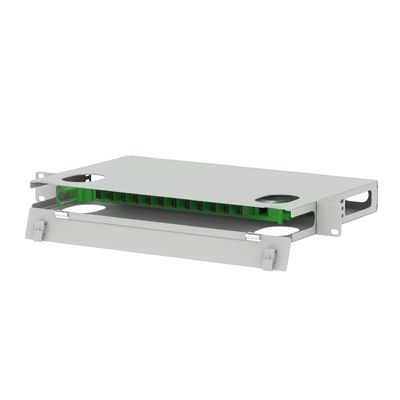

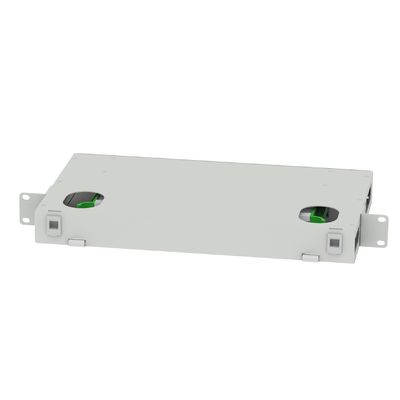

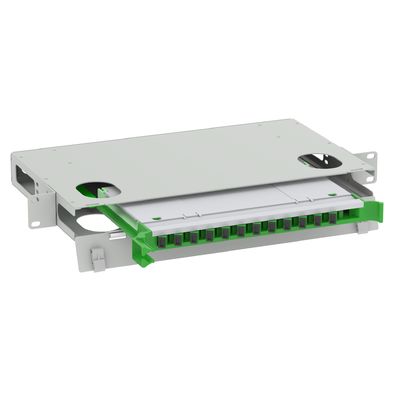

ODN Network SC Type 12 Ports Fiber Distribution Patchpanel with Used Feature RAL 7035

ODN Network SC Type 12 Ports Fiber Distribution Patchpanel with Used Feature RAL 7035
ODN Network SC Type 12 Ports Fiber Distribution Patchpanel with Used Feature RAL 7035 ODN Network SC Type 12 Ports Fiber Distribution Patchpanel with Used Feature RAL 7035 ODN Network SC Type 12 Ports Fiber Distribution Patchpanel with Used Feature RAL 7035 ODN Network SC Type 12 Ports Fiber Distribution Patchpanel with Used Feature RAL 7035 ODN Network SC Type 12 Ports Fiber Distribution Patchpanel with Used Feature RAL 7035 ODN Network SC Type 12 Ports Fiber Distribution Patchpanel with Used Feature RAL 7035

Large Image :  ODN Network SC Type 12 Ports Fiber Distribution Patchpanel with Used Feature RAL 7035

Product Details:
Place of Origin: Hangzhou China
Brand Name: Fiberspace
Model Number: FSP-S6-12-SC
Payment & Shipping Terms:
Minimum Order Quantity: 50 units
Price: $12.00 - $80.00/units
Contact Now

ODN Network SC Type 12 Ports Fiber Distribution Patchpanel with Used Feature RAL 7035

Description
Type: Sub Optic Distribution Frame Use: FTTX
Warranty Time: 5 Years Network: ODN
Color: RAL 7035 Application: Data Center

Products Description

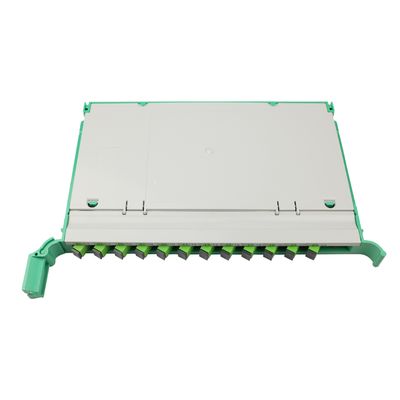

1. Compatible with industry standard equipment frame.Suitable for 19" to 23" Rack with proper interchangeable mounting bracket . 2. Removable front door for allowing easy access to patch and fiber trays. 3. The tray is compatible with the installation of a variety of adapters (SC,FC, E2000 & etc).The Splice and patch are in one tray. 4. Double layer tray design to provide space for pigtail coiling. 5. Individual slide out splice organizer trays to provide easy access. 6. The tray provides maximum protection of optical components.
Product Paramenters
Model
FSP-S6 Series
Size
12 Port: H×W×D = 44 × 482 × 255(MM)
24 Port: H×W×D = 70 × 482 × 255(MM)
48 Port: H×W×D = 122 × 482 × 255(MM)
72 Port: H×W×D = 174 × 482 × 255(MM)
96 Port: H×W×D = 266 × 482 × 255(MM)
14 Port: H×W×D = 330 × 482 × 255(MM)
Material
Cold Rolled Steel
Color
Gray (Default  RAL 7035)
Splice Capacity
12~144 Cores
Adapter Type
ST / FC / SC / LC / E2K etc.
Adaptor Capacity
12~144 Ports
Installation Method
Standard 19" Rack Mount

If you have special needs of customized products, please contact us.
