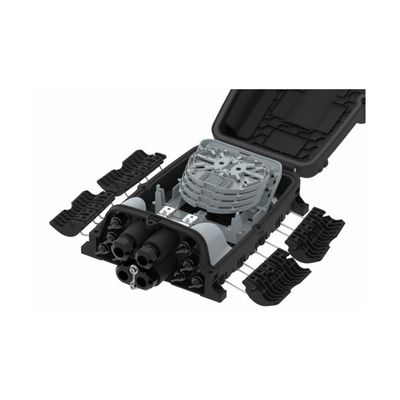

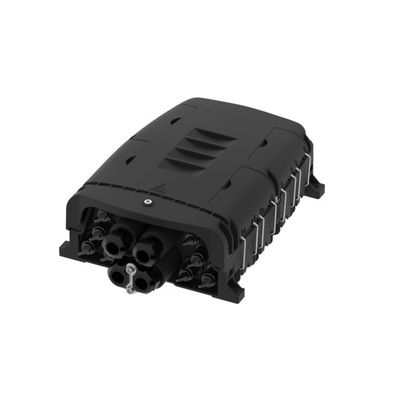

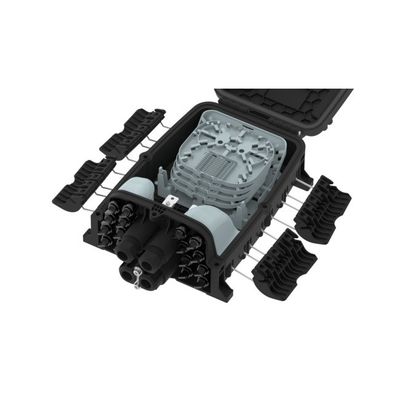

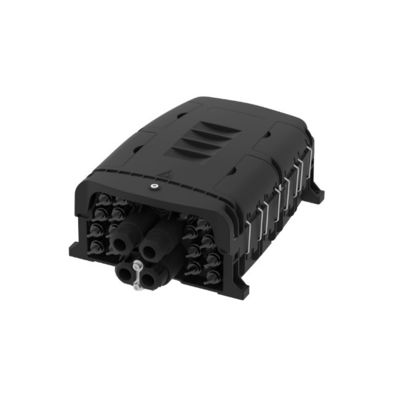

PP GF Anti UV 24 Cores IP65 Wall-Mounted/Pole-Mounted Fiber Optic Distribution Box with 5-

PP GF Anti UV 24 Cores IP65 Wall-Mounted/Pole-Mounted Fiber Optic Distribution Box with 5-
PP GF Anti UV 24 Cores IP65 Wall-Mounted/Pole-Mounted Fiber Optic Distribution Box with 5- PP GF Anti UV 24 Cores IP65 Wall-Mounted/Pole-Mounted Fiber Optic Distribution Box with 5- PP GF Anti UV 24 Cores IP65 Wall-Mounted/Pole-Mounted Fiber Optic Distribution Box with 5- PP GF Anti UV 24 Cores IP65 Wall-Mounted/Pole-Mounted Fiber Optic Distribution Box with 5-

Large Image :  PP GF Anti UV 24 Cores IP65 Wall-Mounted/Pole-Mounted Fiber Optic Distribution Box with 5-

Product Details:
Place of Origin: Hangzhoumade
Brand Name: fiberspace
Model Number: 8/16
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: $9.00 - $10.00/pieces
Contact Now

PP GF Anti UV 24 Cores IP65 Wall-Mounted/Pole-Mounted Fiber Optic Distribution Box with 5-

Description
Type: Fiber Optic Distribution Box Use: FFTX
Warranty Time: 5years Material: PP+GF (Anti UV)

PP GF Anti UV 24 Cores IP65 Wall-Mounted/Pole-Mounted Fiber Optic Distribution Box with 5- 0
Products Description
8/16 Fiber Distribution Box is used as a termination point for the feeder cable to connect with drop cable in FTTx telecommunication network system it can also provide feeder cable for the next splitting box. The optic splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Product Paramenters
Model
8
16
Size (Pic 1)
H×W×D = 380×256×118 (mm)
H×W×D = 380×256×138 (mm)
Material
PP+GF (Anti UV)
PP+GF (Anti UV)
Color
Black
Black
PR Connection Capacity
8 Ports
16 Ports
Adapter Type
Waterproof type SC
Waterproof type SC
Installation Method
Wall Mounting/Pole mounting
/Aerial Mounting
Wall Mounting/Pole mounting
/Aerial Mounting

If you have special needs of customized products, please contact us.

PP GF Anti UV 24 Cores IP65 Wall-Mounted/Pole-Mounted Fiber Optic Distribution Box with 5- 1
PP GF Anti UV 24 Cores IP65 Wall-Mounted/Pole-Mounted Fiber Optic Distribution Box with 5- 2
Routing

PP GF Anti UV 24 Cores IP65 Wall-Mounted/Pole-Mounted Fiber Optic Distribution Box with 5- 3
Related Products
PP GF Anti UV 24 Cores IP65 Wall-Mounted/Pole-Mounted Fiber Optic Distribution Box with 5- 4
PP GF Anti UV 24 Cores IP65 Wall-Mounted/Pole-Mounted Fiber Optic Distribution Box with 5- 5
PP GF Anti UV 24 Cores IP65 Wall-Mounted/Pole-Mounted Fiber Optic Distribution Box with 5- 6
PP GF Anti UV 24 Cores IP65 Wall-Mounted/Pole-Mounted Fiber Optic Distribution Box with 5- 7
PP GF Anti UV 24 Cores IP65 Wall-Mounted/Pole-Mounted Fiber Optic Distribution Box with 5- 8
PP GF Anti UV 24 Cores IP65 Wall-Mounted/Pole-Mounted Fiber Optic Distribution Box with 5- 9
PP GF Anti UV 24 Cores IP65 Wall-Mounted/Pole-Mounted Fiber Optic Distribution Box with 5- 10
PP GF Anti UV 24 Cores IP65 Wall-Mounted/Pole-Mounted Fiber Optic Distribution Box with 5- 11
Certifications
PP GF Anti UV 24 Cores IP65 Wall-Mounted/Pole-Mounted Fiber Optic Distribution Box with 5- 12
Company Introduction
PP GF Anti UV 24 Cores IP65 Wall-Mounted/Pole-Mounted Fiber Optic Distribution Box with 5- 13
About Yuhua Tech Hangzhou Yuhua Technology Co., Ltd. is a high-tech enterprise founded in 2001, during the rapid development of China's FTTH construction it mainly provides solutions and products for domestic ODN construction, specialized in manufacturing ODN devices, such as Fiber adapters, Pigtails, Patchcords, ODB, ODF, and FDC, etc, especially is the largest manufacturer of FDC in the domestic market. With the development of many years formed an integrated enterprise possessing plastic injection production line, SMC shell production line, sheet metal production line, fiber polishing production line, etc, even covered all the processes of ODN products.Now it has a workshop area of about 27,000 square meters, a technical development team of more than 30 people, and more than 200 workers. Hangzhou Fiberspace Import & Export Co., Ltd is a subsidiary of Yuhua Tech, founded in 2020, possessing an experienced R&D team and Marketing team, Focus on providing cost-effective ODN product solutions for global users and bringing Yuhua's products to the world with the brand "Fiberspace". Welcome to our website： http://www.fiberspace.com.cn

FAQ Q:  Are you a manufacturer or trading company? A: We are an Origin factory. Like we mention in the company introduction ,we have two companies ,Yuhua tech & Fiberspace Import &Export,Fiberspace is a subsidiary of Yuhua tech(has been certified by Alibaba),focus on providing cost-effective ODN product solutions for global users and bringing Yuhua's products to the world with the brand "Fiberspace".
Q: Where is your factory located? How can I visit it? A: Our factory is located in No.9 Huan an road, Lishan Town, Fuyang District, Hangzhou City, Zhejiang Province. 40 Minutes by car from Hangzhou Airport.
Q: How can I get the sample? What's the lead time? A: By DHL/UPS/FedEx express. Samples lead time is 7-14 days.
Q: How does your factory control product quality? A: ISO9001 Certificated, independent quality control team with 20 inspectors in our factory. The third-party certificated and factory audit accepted.  Third-party quality control accepted.
Q: Do you provide ODM/OEM service? A: OEM/ODM is welcome, From the concept to finished goods, we have our own designer, do all in the factory.
