Product Details:
|

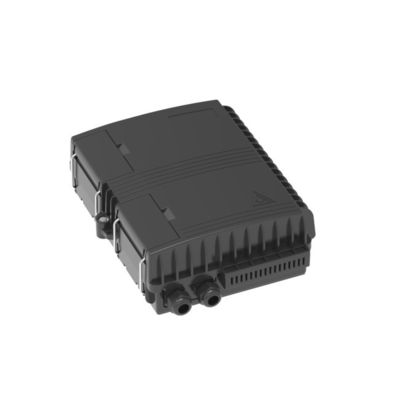

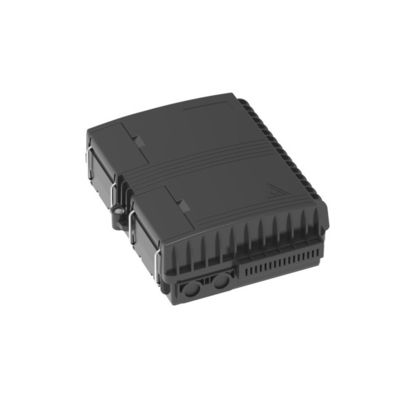

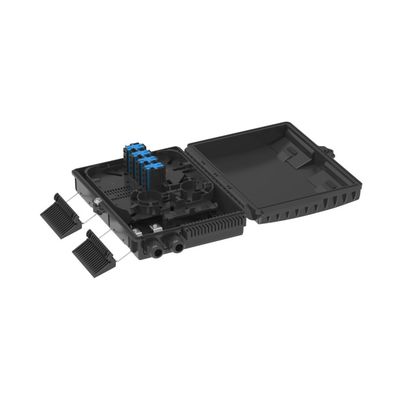

Type: | Fiber Optic Distribution Box | Use: | FFTX |
---|---|---|---|
Warranty Time: | 5years | Material: | PC+ABS |
Model | FSP-P-16-G2-D |
Installation Method | Wall-mounted or pole-mounted |
Color | Black ( or gray) |
Material | PC+ABS |
Cable Ports | 2 Ports (For main cable) + 16 Ports (For drop cable) |
Splice Capacity | 24 Cores |
Size: H×W×D (mm) (Pic 1) | 260×215×95 |
Working Temperature | -40℃~+85℃ |
Relative Humidity | ≤85% (+30℃) |
Atmospheric Pressure | 70KPa~106Kpa |
Insertion Loss | ≤0.15dB |
Return Loss | ≥50dB( UPC) ; ≥60dB(APC) |
