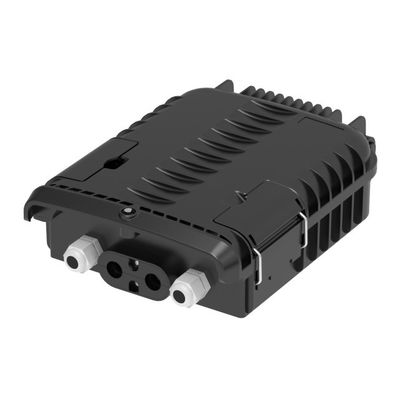

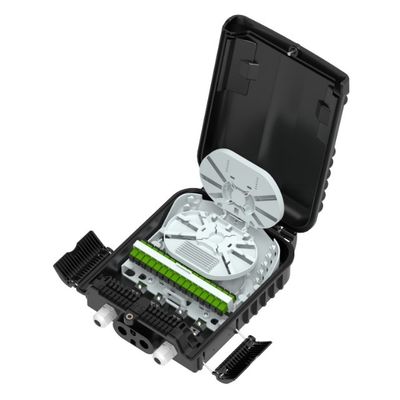

FTTH Network Fiber Optic Terminal Box with 24 Cores High Density Fiber Distribution Box

FTTH Network Fiber Optic Terminal Box with 24 Cores High Density Fiber Distribution Box
FTTH Network Fiber Optic Terminal Box with 24 Cores High Density Fiber Distribution Box FTTH Network Fiber Optic Terminal Box with 24 Cores High Density Fiber Distribution Box

Large Image :  FTTH Network Fiber Optic Terminal Box with 24 Cores High Density Fiber Distribution Box

Product Details:
Place of Origin: Hangzhou made
Brand Name: Fiberspace
Model Number: FSP-P-16-S
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: $9.00 - $10.00/pieces
Contact Now

FTTH Network Fiber Optic Terminal Box with 24 Cores High Density Fiber Distribution Box

Description
Type: Fiber Optic Distribution Box Use: Ftth
Warranty Time: 5 Years Network: ODN
Material: PC+ABS

FTTH Network Fiber Optic Terminal Box with 24 Cores High Density Fiber Distribution Box 0
Products Description
FSP-P-16-S Series Fiber Distribution Box provides a high density wall mounted solution for next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space. It is normally installed in the way of wall mounting or pole mounting.

Product Paramenters
Model
FSP-P-16-S
Size (Pic 1)
H×W×D = 290×210×85 (MM)
Material
PC+ABS
Color
Black
Splice Capacity
24 Cores
Adapter Type
SC
Adaptor Capacity
16 Pcs
Incoming Cable Port
2 Incoming Cables + 1 Uncut Cable
Outcoming Cable Port
16 Pcs
Installation Method
Wall / Pole Mounted

If you have special needs of customized products, please contact us.

FTTH Network Fiber Optic Terminal Box with 24 Cores High Density Fiber Distribution Box 1
Routing:

Splitter type

FTTH Network Fiber Optic Terminal Box with 24 Cores High Density Fiber Distribution Box 2

Distribution type

FTTH Network Fiber Optic Terminal Box with 24 Cores High Density Fiber Distribution Box 3
Related Products
FTTH Network Fiber Optic Terminal Box with 24 Cores High Density Fiber Distribution Box 4
FTTH Network Fiber Optic Terminal Box with 24 Cores High Density Fiber Distribution Box 5
FTTH Network Fiber Optic Terminal Box with 24 Cores High Density Fiber Distribution Box 6
FTTH Network Fiber Optic Terminal Box with 24 Cores High Density Fiber Distribution Box 7
FTTH Network Fiber Optic Terminal Box with 24 Cores High Density Fiber Distribution Box 8
FTTH Network Fiber Optic Terminal Box with 24 Cores High Density Fiber Distribution Box 9
FTTH Network Fiber Optic Terminal Box with 24 Cores High Density Fiber Distribution Box 10
FTTH Network Fiber Optic Terminal Box with 24 Cores High Density Fiber Distribution Box 11
Certifications
FTTH Network Fiber Optic Terminal Box with 24 Cores High Density Fiber Distribution Box 12
Company Introduction
FTTH Network Fiber Optic Terminal Box with 24 Cores High Density Fiber Distribution Box 13
About Yuhua Tech Hangzhou Yuhua Technology Co., Ltd. is a high-tech enterprise founded in 2001, during the rapid development of China's FTTH construction it mainly provides solutions and products for domestic ODN construction, specialized in manufacturing ODN devices, such as Fiber adapters, Pigtails, Patchcords, ODB, ODF, and FDC, etc, especially is the largest manufacturer of FDC in the domestic market. With the development of many years formed an integrated enterprise possessing plastic injection production line, SMC shell production line, sheet metal production line, fiber polishing production line, etc, even covered all the processes of ODN products.Now it has a workshop area of about 27,000 square meters, a technical development team of more than 30 people, and more than 200 workers. Hangzhou Fiberspace Import & Export Co., Ltd is a subsidiary of Yuhua Tech, founded in 2020, possessing an experienced R&D team and Marketing team, Focus on providing cost-effective ODN product solutions for global users and bringing Yuhua's products to the world with the brand "Fiberspace". Welcome to our website： http://www.fiberspace.com.cn

FAQ Q:  Are you a manufacturer or trading company? A: We are an Origin factory. Like we mention in the company introduction ,we have two companies ,Yuhua tech & Fiberspace Import &Export,Fiberspace is a subsidiary of Yuhua tech(has been certified by Alibaba),focus on providing cost-effective ODN product solutions for global users and bringing Yuhua's products to the world with the brand "Fiberspace".
Q: Where is your factory located? How can I visit it? A: Our factory is located in No.9 Huan an road, Lishan Town, Fuyang District, Hangzhou City, Zhejiang Province. 40 Minutes by car from Hangzhou Airport.
Q: How can I get the sample? What's the lead time? A: By DHL/UPS/FedEx express. Samples lead time is 7-14 days.
Q: How does your factory control product quality? A: ISO9001 Certificated, independent quality control team with 20 inspectors in our factory. The third-party certificated and factory audit accepted.  Third-party quality control accepted.
Q: Do you provide ODM/OEM service? A: OEM/ODM is welcome, From the concept to finished goods, we have our own designer, do all in the factory.
