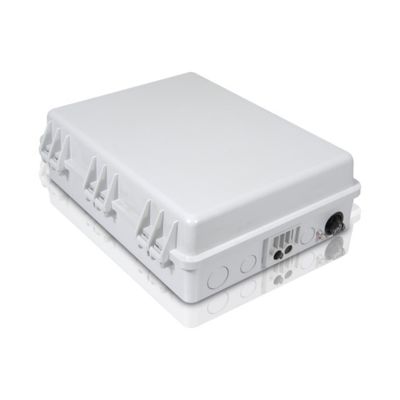

LC Connector Fiber Optic FTTH Network 48 Cores Wall-Pole Mounted Fiber Distribution Box

LC Connector Fiber Optic FTTH Network 48 Cores Wall-Pole Mounted Fiber Distribution Box
LC Connector Fiber Optic FTTH Network 48 Cores Wall-Pole Mounted Fiber Distribution Box LC Connector Fiber Optic FTTH Network 48 Cores Wall-Pole Mounted Fiber Distribution Box

Large Image :  LC Connector Fiber Optic FTTH Network 48 Cores Wall-Pole Mounted Fiber Distribution Box

Product Details:
Place of Origin: Hangzhou made
Brand Name: Fiberspace
Model Number: FSP-P-32A
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: $9.00 - $10.00/pieces
Contact Now

LC Connector Fiber Optic FTTH Network 48 Cores Wall-Pole Mounted Fiber Distribution Box

Description
Type: Fiber Optic Distribution Box Use: Ftth
Warranty Time: 5 Years Network: ODN
Material: PC+ABS

LC Connector Fiber Optic FTTH Network 48 Cores Wall-Pole Mounted Fiber Distribution Box 0
Products Description
FSP-P-32A Fiber Distribution Box is is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Product Paramenters
Model
FSP-P-32A
Installation Method
Wall-mounted / Pole-mounted
Color
Gray (Default)
Material
PC+ABS
Capacity Of Splicing
48 Cores
Adapter Ports
32 Pcs (Up to 48 ports)
Adapter Type
SC/ FC / LC etc.
Splitter Type
1:8 / 1:16 / 1:32 Mini PLC
Size: H×W×D (mm) (Pic 1)
420×320×130
IP Grade
IP 55
Working Temperature
-40℃～+85℃
Relative Humidity
≤85% (+30℃)
Atmospheric Pressure
70KPa~106Kpa

If you have special needs of customized products, please contact us.
