ODN Network db Meter Optic Fiber Data Storage Handheld Optical Power Meter with 3

Large Image : ODN Network db Meter Optic Fiber Data Storage Handheld Optical Power Meter with 3

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	LinkU
Model Number:	LP-2 series

Payment & Shipping Terms:

Minimum Order Quantity:	10 units
Price:	$13.60 - $19.70/units
Packaging Details:	carton package
Supply Ability:	500 Unit/Units per Month

Contact Now

ODN Network db Meter Optic Fiber Data Storage Handheld Optical Power Meter with 3

Description

Type:	Optical Power Meter	Use:	FTTx
Warranty Time:	3 Years	Network:	ODN
Port:	Shanghai/Ningbo

Products Description

Description: Optical Power Meter is used to test power, loss, continuity and faults on all types of fiber optic systems. LP series provides high accuracy and simplicity of use.

Features: ❖ Auto-wavelengths recognition
❖ Auto power-off, Back-light
❖ Integrated with high performance optical detector and visual fault locator (LP-V)

Product Paramenters

Model #	LP-2T	LP-2C	LP-2TV	LP-2CV
Measuring Range	-70 to +10dBm	-50 to +26dBm	-70 to +10dBm	-50 to +26dBm
VFL Output Power (1)	N/A	N/A	1mW	1mW
VFL Output Wavelength	N/A	N/A	650nm ±10nm	650nm ±10nm

Note: (1) The output power of the VFL can be customized.

Optional Items	FC(Male) to LC(Female) Adapter
Detector Type	InGaAs
Resolution	0.001dB
Linearity	±5%
Connector	Interchangeable FC/PC, SC/PC, ST/PC &. 2.5mm universal
Tone Detection	270Hz, 1KHz, 2KHz
Operating Temperature	-10 to +50℃
Storage Temperature	-20 to +70℃
Power supply	2 * AA Batteries; AC/DC Adapter
Dimension &. Weight	160×58×32 mm (L×W×H); 160g

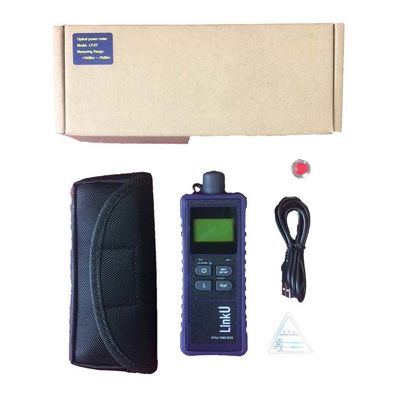

Standard Accessories:	FC/PC &. SC/PC adapter, carrying bag, Manual
Optional Items	FC(Male) to LC(Female) Adapter

If you have special needs of customized products, please contact us.
