3 OTDR LOT2100 MINI Fiber Tester Equipment for FTTx Maintenance and Troubleshooting

Large Image : 3 OTDR LOT2100 MINI Fiber Tester Equipment for FTTx Maintenance and Troubleshooting

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	LinkU
Model Number:	LOT2100 series

Payment & Shipping Terms:

Price:	$260.00 - $640.00/units
Packaging Details:	carton package
Supply Ability:	500 Unit/Units per Month

Contact Now

3 OTDR LOT2100 MINI Fiber Tester Equipment for FTTx Maintenance and Troubleshooting

Description

Type:	OTDR	Use:	FTTx
Warranty Time:	3 Years	Network:	ODN
Port:	Shanghai/Ningbo

Products Description

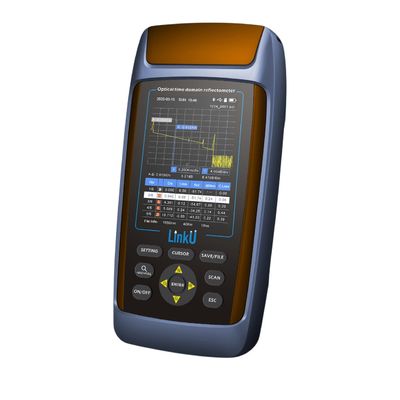

Description: The LOT2100 OTDR is a highly cost-effective, easy-to-use diagnostic tool, specially designed for FTTH network construction and maintenance. Its user-friendly interface has been designed for simple, one-button testing.

Features: ❖ Handheld & lightweight (0.3 Kg)
❖ Build-in OLS/OPM/VFL modules
❖ 1000 groups of test records storage
❖ Event Map
❖ 3.2-inch LCD screen
❖ Professional PC software for generating test report
❖ One-button automatic test

Product Paramenters

Model	LOT2100	LOT2100-15F	LOT2100-16F
Wavelength (±20nm)	1310/1550	1550 with filter	1625 with filter
Dynamic Range (dB) (1)	22/20	20	20

(1) Dynamic range is measured with maximum pulse width, averaging time is 3 minutes, SNR=1; The level difference between the RMS noise level and the level where near end back-scattering occurs.

SC/PC connector, USB cable, AC power adapter, analysis software(CD), certificate of calibration, user’s guide (CD), carrying bag	5ns/10ns/25ns/50ns/100ns/250ns/500ns/1μs/2.5μs/5us/10μs/20μs
Distance Accuracy	± (1m + measuring distance × 5×10-5+ sampling resolution)
Attenuation Accuracy	±0.05 dB/ dB
Reflectance Accuracy	±4 dB
Event Dead Zone (EDZ) (2)	3m
Attenuation Dead Zone (ADZ) (2)	8m
OLS Module	-5dBm
OPM Module	850/1300/1310/1490/1550/1625nm , +26~-50dBm
VFL Module	1 mW @ 650nm
Data Storage	1000 records
Connectivity	USB
Power Supply	Li-ion Rechargeable Battery/ AC Adapter
Battery Life	10 hours / 20 hours (standby)
Operating Temperature	0℃ ~ 50℃
Storage Temperature	-20℃ ~ 70℃
Dimensions (LWH)	170mm82mm35mm
Standard Accessories:	SC/PC connector, USB cable, AC power adapter, analysis software(CD), certificate of calibration, user’s guide (CD), carrying bag

(2) Event Dead Zone and Attenuation Dead Zone are measured with minimum pulse width;

If you have special needs of customized products, please contact us.

Related Products

Certifications

Company Introduction

About Yuhua Tech Hangzhou Yuhua Technology Co., Ltd. is a high-tech enterprise founded in 2001, during the rapid development of China's FTTH construction it mainly provides solutions and products for domestic ODN construction, specialized in manufacturing ODN devices, such as Fiber adapters, Pigtails, Patchcords, ODB, ODF, and FDC, etc, especially is the largest manufacturer of FDC in the domestic market. With the development of many years formed an integrated enterprise possessing plastic injection production line, SMC shell production line, sheet metal production line, fiber polishing production line, etc, even covered all the processes of ODN products.Now it has a workshop area of about 27,000 square meters, a technical development team of more than 30 people, and more than 200 workers. Hangzhou Fiberspace Import & Export Co., Ltd is a subsidiary of Yuhua Tech, founded in 2020, possessing an experienced R&D team and Marketing team, Focus on providing cost-effective ODN product solutions for global users and bringing Yuhua's products to the world with the brand "Fiberspace". Welcome to our website： http://www.fiberspace.com.cn

FAQ Q: Are you a manufacturer or trading company? A: We are an Origin factory. Like we mention in the company introduction ,we have two companies ,Yuhua tech & Fiberspace Import &Export,Fiberspace is a subsidiary of Yuhua tech(has been certified by Alibaba),focus on providing cost-effective ODN product solutions for global users and bringing Yuhua's products to the world with the brand "Fiberspace".

Q: Where is your factory located? How can I visit it? A: Our factory is located in No.9 Huan an road, Lishan Town, Fuyang District, Hangzhou City, Zhejiang Province. 40 Minutes by car from Hangzhou Airport.

Q: How can I get the sample? What's the lead time? A: By DHL/UPS/FedEx express. Samples lead time is 7-14 days.

Q: How does your factory control product quality? A: ISO9001 Certificated, independent quality control team with 20 inspectors in our factory. The third-party certificated and factory audit accepted. Third-party quality control accepted.

Q: Do you provide ODM/OEM service? A: OEM/ODM is welcome, From the concept to finished goods, we have our own designer, do all in the factory.

Packing&Shipping

Production Line

Why Choose Us

Contact Details

Hangzhou Fiberspace Import & Export Co., Ltd

Contact Person: Mr. Tim Dun

Tel: +8613761318591

Other Products

3 Time OTDR LOT5100 MINI Fiber Tester Equipment for FTTH Optical Time Fiber Cable Handle

Type: OTDR

Use: FTTx

Warranty Time: 3 Years

Network: ODN

FTTx Network OTDR LOT2200 MINI Fiber Tester Equipment for Fiber Optic Cable Handle ODN

Type: OTDR

Use: FTTx

Warranty Time: 3 Years

Network: ODN

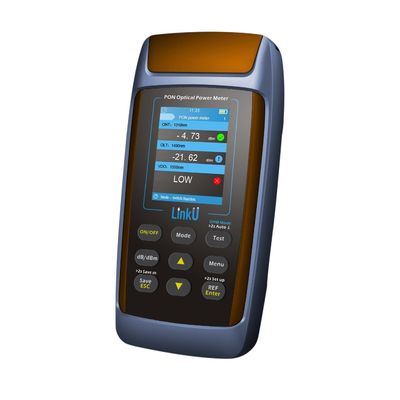

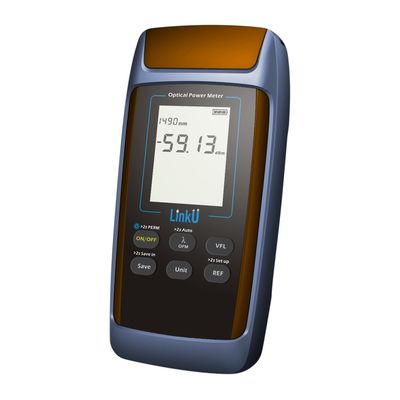

ODN Network db Meter Optic Fiber Data Storage Handheld Optical Power Meter with 3

Type: Optical Power Meter

Use: FTTx

Warranty Time: 3 Years

Network: ODN

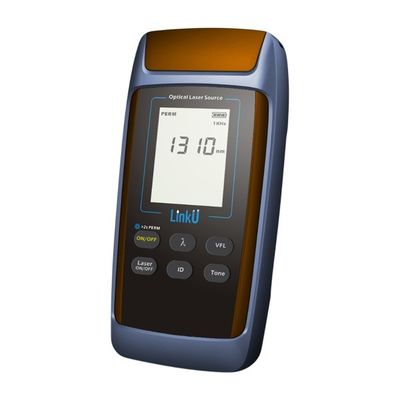

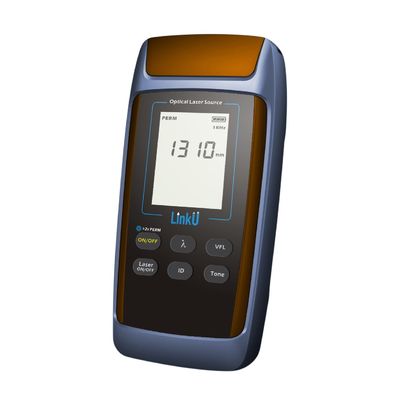

LS 3 Series Optic Fiber Laser Source 3- for Continuity and Loss Testing of Multi-Fiber
