ODN Network Sub Optic Distribution Frame 12-96 Cores Patch Panel with SC FC Connectors

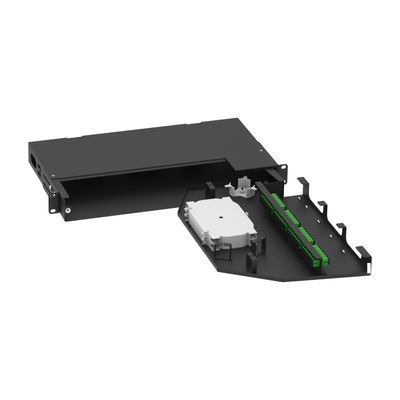

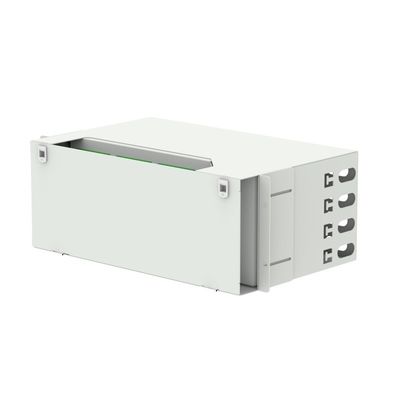

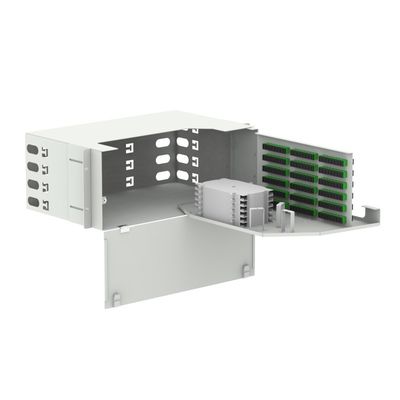

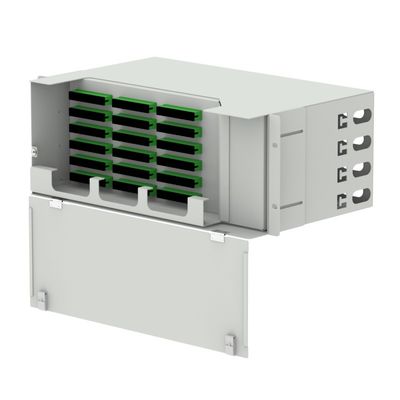

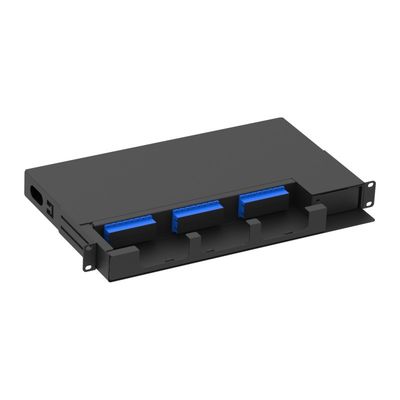

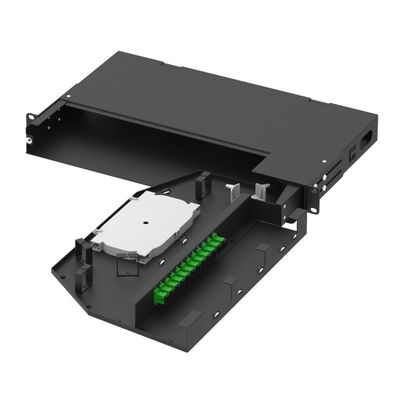

Large Image : ODN Network Sub Optic Distribution Frame 12-96 Cores Patch Panel with SC FC Connectors

Product Details:

Place of Origin:	Hangzhou China
Brand Name:	Fiberspace
Model Number:	FSP-S11

Payment & Shipping Terms:

Minimum Order Quantity:	20 units
Price:	$16.50 - $40.00/units

Contact Now

ODN Network Sub Optic Distribution Frame 12-96 Cores Patch Panel with SC FC Connectors

Description

Type:	Sub Optic Distribution Frame	Use:	FTTX
Warranty Time:	5 Years	Network:	ODN
Color:	Gray / Black	Material:	Cold Rolled Steel
Connector Type:	SC FC	Capacity:	12-96 Cores

Products Description

1. Standard 19 inch installation. 2. Available adapter port:ST,FC,SC,LC,E2K etc. 3. With various panels to fit different adaptor interface. 4. Independent cable passage. 5. Specifications can be customized according to requirements. 6. Max capacity reach to 96 ports.

Product Paramenters

Model	FSP-S11 Series
Size	12~36 Port: H×W×D = 44×482×280(MM) 96 Port: H×W×D = 132×482×280(MM)
Material	Cold Rolled Steel
Color	Gray (Default RAL 7035) / Black / White
Splice Capacity	12~96 Cores
Adapter Type	ST / FC / SC / LC / E2K etc.
Adaptor Capacity	12~96 Ports
Installation Method	Standard 19" Rack Mount

If you have special needs of customized products, please contact us.

Related Products

Certifications

Company Introduction

About Yuhua Tech Hangzhou Yuhua Technology Co., Ltd. is a high-tech enterprise founded in 2001, during the rapid development of China's FTTH construction it mainly provides solutions and products for domestic ODN construction, specialized in manufacturing ODN devices, such as Fiber adapters, Pigtails, Patchcords, ODB, ODF, and FDC, etc, especially is the largest manufacturer of FDC in the domestic market. With the development of many years formed an integrated enterprise possessing plastic injection production line, SMC shell production line, sheet metal production line, fiber polishing production line, etc, even covered all the processes of ODN products.Now it has a workshop area of about 27,000 square meters, a technical development team of more than 30 people, and more than 200 workers. Hangzhou Fiberspace Import & Export Co., Ltd is a subsidiary of Yuhua Tech, founded in 2020, possessing an experienced R&D team and Marketing team, Focus on providing cost-effective ODN product solutions for global users and bringing Yuhua's products to the world with the brand "Fiberspace". Welcome to our website： http://www.fiberspace.com.cn

FAQ Q: Are you a manufacturer or trading company? A: We are an Origin factory. Like we mention in the company introduction ,we have two companies ,Yuhua tech & Fiberspace Import &Export,Fiberspace is a subsidiary of Yuhua tech(has been certified by Alibaba),focus on providing cost-effective ODN product solutions for global users and bringing Yuhua's products to the world with the brand "Fiberspace".

Q: Where is your factory located? How can I visit it? A: Our factory is located in No.9 Huan an road, Lishan Town, Fuyang District, Hangzhou City, Zhejiang Province. 40 Minutes by car from Hangzhou Airport.

Q: How can I get the sample? What's the lead time? A: By DHL/UPS/FedEx express. Samples lead time is 7-14 days.

Q: How does your factory control product quality? A: ISO9001 Certificated, independent quality control team with 20 inspectors in our factory. The third-party certificated and factory audit accepted. Third-party quality control accepted.

Q: Do you provide ODM/OEM service? A: OEM/ODM is welcome, From the concept to finished goods, we have our own designer, do all in the factory.
