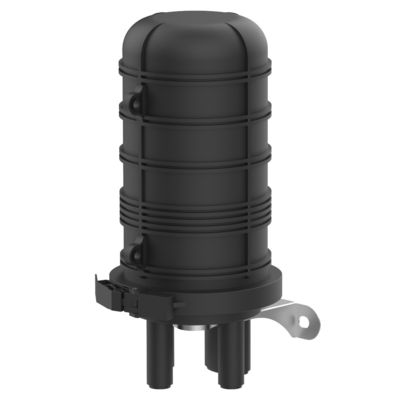

48 Cores Fiber Optic Splice Closure for FTTX and Network Connections Cable Joint Box

48 Cores Fiber Optic Splice Closure for FTTX and Network Connections Cable Joint Box
48 Cores Fiber Optic Splice Closure for FTTX and Network Connections Cable Joint Box 48 Cores Fiber Optic Splice Closure for FTTX and Network Connections Cable Joint Box 48 Cores Fiber Optic Splice Closure for FTTX and Network Connections Cable Joint Box 48 Cores Fiber Optic Splice Closure for FTTX and Network Connections Cable Joint Box 48 Cores Fiber Optic Splice Closure for FTTX and Network Connections Cable Joint Box 48 Cores Fiber Optic Splice Closure for FTTX and Network Connections Cable Joint Box

Large Image :  48 Cores Fiber Optic Splice Closure for FTTX and Network Connections Cable Joint Box

Product Details:
Place of Origin: Hangzhou China
Brand Name: Fiberspace
Model Number: FSP-CD-09
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: $11.00 - $13.00/pieces
Contact Now

48 Cores Fiber Optic Splice Closure for FTTX and Network Connections Cable Joint Box

Description
Type: Fiber Optic Splice Closure Use: FTTX
Warranty Time: 3 Years Network: None
Material: PP/PC Color: Black
Splicing Capacity: 48 Size: 300*150*150mm

Products Description
1. High-strength modified polypropylene material 2. Easy for re-entry and re-open 3. Compliant with RoHS 4. Protection grade: IP68 5. Technical Specification

Product Paramenters
Model
FSP-CD-09
Environment
Aerial, direct buried, pipelined, wall mounting, manhole
Splice tray Capacity
12 Cores
Splice Trays
4 Pcs
Cable entry ports
5 Ports (Max Φ15mm )
Protection Level
IP68
Color
Black
Body Material
PP
Dimension
H × D = 300× Φ150 mm
Sealing Method
Mechanical Seal / Heat Shrink Seal

If you have special needs of customized products, please contact us.

48 Cores Fiber Optic Splice Closure for FTTX and Network Connections Cable Joint Box 0
No.
Name
Unit
Qty
Remark
1
Cover
Pc
1
2
Bracket & Cable Storage
Set
1
3
Splice Tray
Pc
4
12 cores
4
Cable Fixing
Set
4
1 Set For Uncut
5
Clamp
Set
1
6
Sealing Ring
Pc
1
7
Base
Pc
1
8
Installation Kit
Set
1
