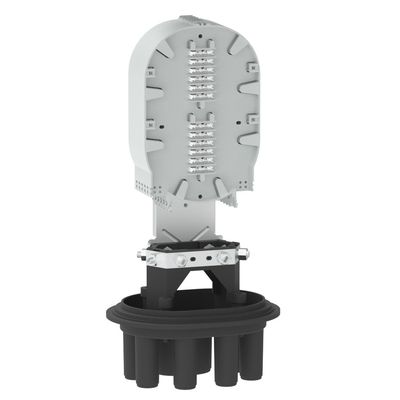

3- Black 288 Cores Fiber Optic Splice Closure Cable Joint Box for Network FTTH Networks

3- Black 288 Cores Fiber Optic Splice Closure Cable Joint Box for Network FTTH Networks
3- Black 288 Cores Fiber Optic Splice Closure Cable Joint Box for Network FTTH Networks 3- Black 288 Cores Fiber Optic Splice Closure Cable Joint Box for Network FTTH Networks 3- Black 288 Cores Fiber Optic Splice Closure Cable Joint Box for Network FTTH Networks 3- Black 288 Cores Fiber Optic Splice Closure Cable Joint Box for Network FTTH Networks 3- Black 288 Cores Fiber Optic Splice Closure Cable Joint Box for Network FTTH Networks 3- Black 288 Cores Fiber Optic Splice Closure Cable Joint Box for Network FTTH Networks

Large Image :  3- Black 288 Cores Fiber Optic Splice Closure Cable Joint Box for Network FTTH Networks

Product Details:
Place of Origin: Hangzhou China
Brand Name: Fiberspace
Model Number: FSP-CD-08
Payment & Shipping Terms:
Minimum Order Quantity: 20 pieces
Price: $23.50 - $35.00/pieces
Contact Now

3- Black 288 Cores Fiber Optic Splice Closure Cable Joint Box for Network FTTH Networks

Description
Type: Fiber Optic Splice Closure Use: FTTX
Warranty Time: 3 Years Network: None
Material: PP+GF Dimensions: 480 *220 *210 Mm
Splicing Capacity: 288 Color: Black

Products Description
1. High-strength modified polypropylene material 2. Easy for re-entry and re-open 3. Compliant with RoHS 4. Protection grade: IP68 5. Technical Specification

Product Paramenters
Model
FSP-CD-08
Environment
Aerial, direct buried, pipelined, wall mounting, manhole
Splice tray Capacity
48 Cores
Splice Trays
6 Pcs
Cable entry ports
8 Ports (6 ports: Φ20mm , 2 Ports : Φ28mm (Oval ,Uncut)
Protection Level
IP68
Color
Black
Body Material
PP
Dimension
H × D = 480 × 220 × 210 mm
Sealing Method
Heat Shrink Seal

If you have special needs of customized products, please contact us.

3- Black 288 Cores Fiber Optic Splice Closure Cable Joint Box for Network FTTH Networks 0
No.
Name
Unit
Qty
Remark
1
Hoop
Pc
1
2
Cover
Pc
1
3
Splice Tray
Set
6
48 Cores / Tray
4
Cable Storage
Pc
1
5
Tray Fixing Plate
Pc
1
6
Cable Fixing
Set
8
1 Set For Uncut
7
Bracket
Pc
1
8
Clamp
Set
1
9
Sealing Ring
Pc
1
10
Base
Pc
1
Related Products
3- Black 288 Cores Fiber Optic Splice Closure Cable Joint Box for Network FTTH Networks 1
3- Black 288 Cores Fiber Optic Splice Closure Cable Joint Box for Network FTTH Networks 2
3- Black 288 Cores Fiber Optic Splice Closure Cable Joint Box for Network FTTH Networks 3
3- Black 288 Cores Fiber Optic Splice Closure Cable Joint Box for Network FTTH Networks 4
3- Black 288 Cores Fiber Optic Splice Closure Cable Joint Box for Network FTTH Networks 5
3- Black 288 Cores Fiber Optic Splice Closure Cable Joint Box for Network FTTH Networks 6
3- Black 288 Cores Fiber Optic Splice Closure Cable Joint Box for Network FTTH Networks 7
3- Black 288 Cores Fiber Optic Splice Closure Cable Joint Box for Network FTTH Networks 8
Certifications
3- Black 288 Cores Fiber Optic Splice Closure Cable Joint Box for Network FTTH Networks 9
Company Introduction
3- Black 288 Cores Fiber Optic Splice Closure Cable Joint Box for Network FTTH Networks 10
About Yuhua Tech Hangzhou Yuhua Technology Co., Ltd. is a high-tech enterprise founded in 2001, during the rapid development of China's FTTH construction it mainly provides solutions and products for domestic ODN construction, specialized in manufacturing ODN devices, such as Fiber adapters, Pigtails, Patchcords, ODB, ODF, and FDC, etc, especially is the largest manufacturer of FDC in the domestic market. With the development of many years formed an integrated enterprise possessing plastic injection production line, SMC shell production line, sheet metal production line, fiber polishing production line, etc, even covered all the processes of ODN products.Now it has a workshop area of about 27,000 square meters, a technical development team of more than 30 people, and more than 200 workers. Hangzhou Fiberspace Import & Export Co., Ltd is a subsidiary of Yuhua Tech, founded in 2020, possessing an experienced R&D team and Marketing team, Focus on providing cost-effective ODN product solutions for global users and bringing Yuhua's products to the world with the brand "Fiberspace". Welcome to our website： http://www.fiberspace.com.cn

FAQ Q:  Are you a manufacturer or trading company? A: We are an Origin factory. Like we mention in the company introduction ,we have two companies ,Yuhua tech & Fiberspace Import &Export,Fiberspace is a subsidiary of Yuhua tech(has been certified by Alibaba),focus on providing cost-effective ODN product solutions for global users and bringing Yuhua's products to the world with the brand "Fiberspace".
Q: Where is your factory located? How can I visit it? A: Our factory is located in No.9 Huan an road, Lishan Town, Fuyang District, Hangzhou City, Zhejiang Province. 40 Minutes by car from Hangzhou Airport.
Q: How can I get the sample? What's the lead time? A: By DHL/UPS/FedEx express. Samples lead time is 7-14 days.
Q: How does your factory control product quality? A: ISO9001 Certificated, independent quality control team with 20 inspectors in our factory. The third-party certificated and factory audit accepted.  Third-party quality control accepted.
Q: Do you provide ODM/OEM service? A: OEM/ODM is welcome, From the concept to finished goods, we have our own designer, do all in the factory.
Packing&Shipping
3- Black 288 Cores Fiber Optic Splice Closure Cable Joint Box for Network FTTH Networks 11
3- Black 288 Cores Fiber Optic Splice Closure Cable Joint Box for Network FTTH Networks 12
Production Line
3- Black 288 Cores Fiber Optic Splice Closure Cable Joint Box for Network FTTH Networks 13
3- Black 288 Cores Fiber Optic Splice Closure Cable Joint Box for Network FTTH Networks 14
3- Black 288 Cores Fiber Optic Splice Closure Cable Joint Box for Network FTTH Networks 15
3- Black 288 Cores Fiber Optic Splice Closure Cable Joint Box for Network FTTH Networks 16
3- Black 288 Cores Fiber Optic Splice Closure Cable Joint Box for Network FTTH Networks 17
3- Black 288 Cores Fiber Optic Splice Closure Cable Joint Box for Network FTTH Networks 18
Why Choose Us
3- Black 288 Cores Fiber Optic Splice Closure Cable Joint Box for Network FTTH Networks 19
