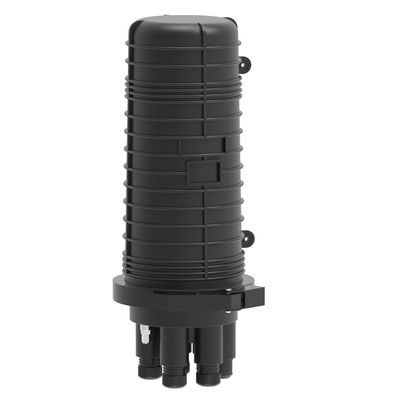

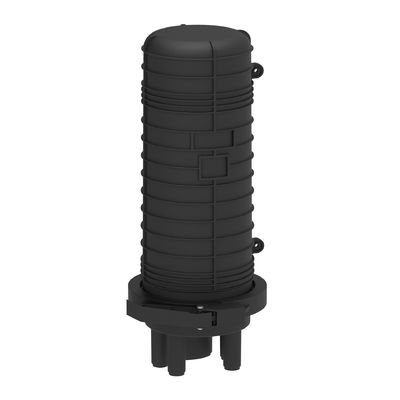

Product Details:
|
| Type: | Fiber Optic Splice Closure | Use: | FTTX |
|---|---|---|---|
| Warranty Time: | 3 Years | Network: | Wired LAN, None |
| Material: | PP/PC | Color: | Black |
| Splicing Capacity: | 192 | Size: | 470*180*180mm |
Model | FSP-CD-13 |
Environment | Aerial, direct buried, pipelined, wall mounting, manhole |
Splice Capacity | 192 Cores |

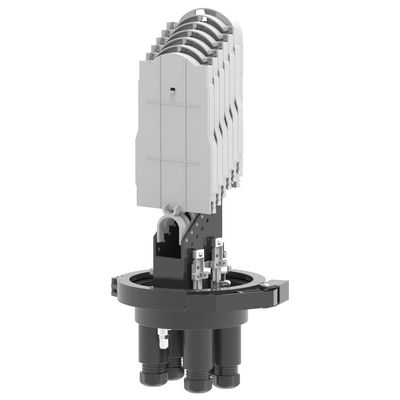

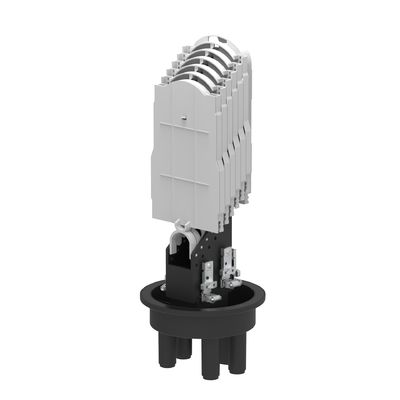

Splice Trays | 6 Pcs |

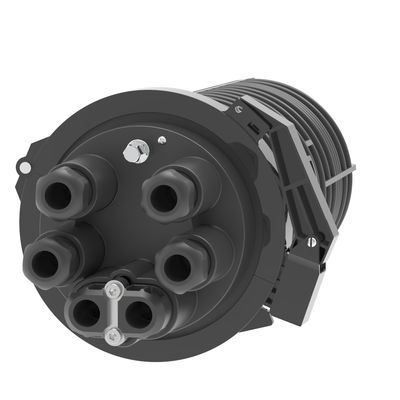

Cable entry ports | 6 Ports (Max Φ18mm, 2 Ports For Uncut Access) |
Protection Level | IP68 |
Color | Black |
Body Material | PP |
Dimension | H × D = 470 × Φ180 mm |

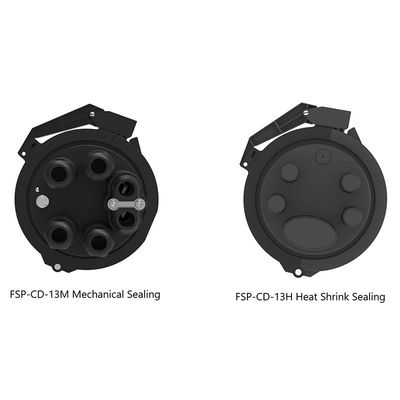

Sealing Method | Mechanical Seal / Heat Shrink Seal |
No. | Name | Unit | Qty | Remark |
1 | Cover | Pc | 1 | |
2 | Splice Tray | Set | 6 | 32 Cores / Tray |
3 | Cable Storage | Pc | 1 | |
4 | Bracket | Pc | 1 | |
5 | Cable Fixing | Set | 6 | 2 Set For Uncut |
6 | Clamp | Set | 1 | |
7 | Sealing Ring | Pc | 1 | |
8 | Base | Pc | 1 |
No. | Name | Unit | Qty | Remark |
1 | Cover | Pc | 1 | |
2 | Cable Storage | Pc | 1 | |
3 | Splice Tray | Set | 6 | 32 Cores / Tray |
4 | Bracket | Pc | 1 | |
5 | Cable Fixing | Set | 6 | 2 Set For Uncut |
6 | Clamp | Set | 1 | |
7 | Sealing Ring | Pc | 1 | |
8 | Base | Pc | 1 | |
9 | Mechanical seal module | Set | 1 | For Uncut |
10 | Mechanical seal module | Set | 4 | For Single Cable |
