Overhead Line Accessories PA1500 FTTH Cable Anchoring Clamps High Tension Plastic Wed Type

Overhead Line Accessories PA1500 FTTH Cable Anchoring Clamps High Tension Plastic Wed Type
Overhead Line Accessories PA1500 FTTH Cable Anchoring Clamps High Tension Plastic Wed Type Overhead Line Accessories PA1500 FTTH Cable Anchoring Clamps High Tension Plastic Wed Type Overhead Line Accessories PA1500 FTTH Cable Anchoring Clamps High Tension Plastic Wed Type Overhead Line Accessories PA1500 FTTH Cable Anchoring Clamps High Tension Plastic Wed Type Overhead Line Accessories PA1500 FTTH Cable Anchoring Clamps High Tension Plastic Wed Type Overhead Line Accessories PA1500 FTTH Cable Anchoring Clamps High Tension Plastic Wed Type

Large Image :  Overhead Line Accessories PA1500 FTTH Cable Anchoring Clamps High Tension Plastic Wed Type

Product Details:
Place of Origin: Hangzhou China
Brand Name: Fiberspace
Model Number: PA1500
Payment & Shipping Terms:
Minimum Order Quantity: 600 units
Price: $2.40 - $3.00/units
Contact Now

Overhead Line Accessories PA1500 FTTH Cable Anchoring Clamps High Tension Plastic Wed Type

Description
Type: Pole Mounted Iron Accessies Use: Overhead Line Accessories
Warranty Time: 10 Years Color: Black
Material: Metal, PA66 Usage: Suspension Cable
Application:: Overhead Line Accessories

Products Description

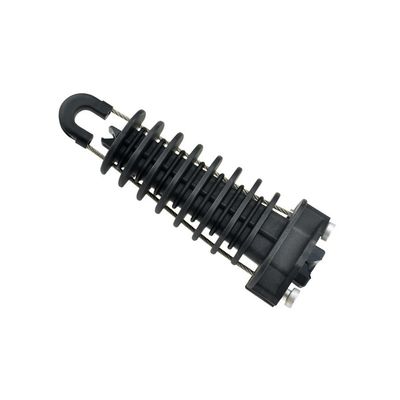

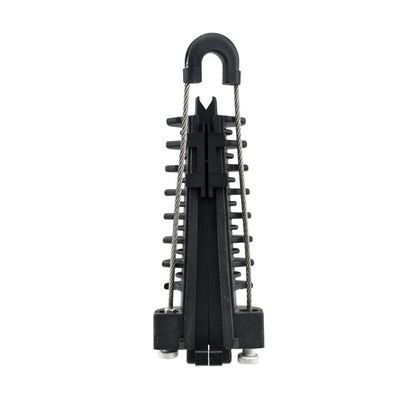

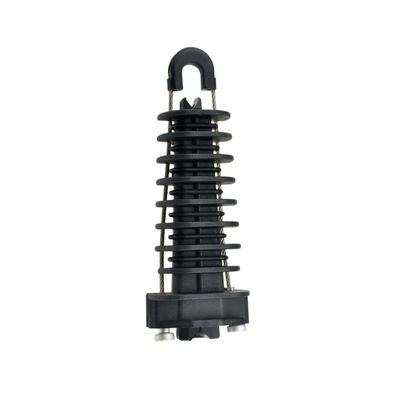

PA1500 anchor clamp/tension clamp is used for ADSS fiber optic cable fixing on pole,it has the characteristic of
Automatic conical tightening and Opening bail which is easy to be installed.

Clamp body made of weather and UV resistance Polymer or aluminum alloy body with polymer wedge core.
Adjustable link made of hot dip galvanized steel(FA) or stainless steel(SS).

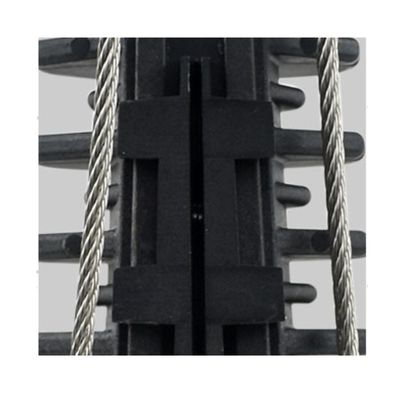

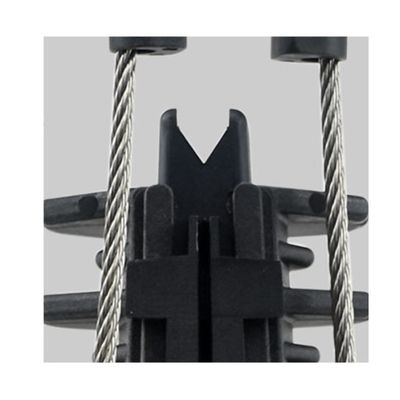

A pair of wedges grips the cable automatically within the conical body.
The installation does not require any specific tools and the operating time is drastically reduced.

Product Paramenters
Model
PA1500
Conduction Range
25~50 mm2
Destructive
10~13 KN
Body
PA66 Fiberglass
Wedges
PA66 Fiberglass
Rope
Steel
Weight
425 KG

If you have special needs of customized products, please contact us.

Overhead Line Accessories PA1500 FTTH Cable Anchoring Clamps High Tension Plastic Wed Type 0
Overhead Line Accessories PA1500 FTTH Cable Anchoring Clamps High Tension Plastic Wed Type 1
Related Products
Overhead Line Accessories PA1500 FTTH Cable Anchoring Clamps High Tension Plastic Wed Type 2
Overhead Line Accessories PA1500 FTTH Cable Anchoring Clamps High Tension Plastic Wed Type 3
Overhead Line Accessories PA1500 FTTH Cable Anchoring Clamps High Tension Plastic Wed Type 4
Overhead Line Accessories PA1500 FTTH Cable Anchoring Clamps High Tension Plastic Wed Type 5
Overhead Line Accessories PA1500 FTTH Cable Anchoring Clamps High Tension Plastic Wed Type 6
Overhead Line Accessories PA1500 FTTH Cable Anchoring Clamps High Tension Plastic Wed Type 7
Overhead Line Accessories PA1500 FTTH Cable Anchoring Clamps High Tension Plastic Wed Type 8
Overhead Line Accessories PA1500 FTTH Cable Anchoring Clamps High Tension Plastic Wed Type 9
Certifications
Overhead Line Accessories PA1500 FTTH Cable Anchoring Clamps High Tension Plastic Wed Type 10
Company Introduction
Overhead Line Accessories PA1500 FTTH Cable Anchoring Clamps High Tension Plastic Wed Type 11
About Yuhua Tech Hangzhou Yuhua Technology Co., Ltd. is a high-tech enterprise founded in 2001, during the rapid development of China's FTTH construction it mainly provides solutions and products for domestic ODN construction, specialized in manufacturing ODN devices, such as Fiber adapters, Pigtails, Patchcords, ODB, ODF, and FDC, etc, especially is the largest manufacturer of FDC in the domestic market. With the development of many years formed an integrated enterprise possessing plastic injection production line, SMC shell production line, sheet metal production line, fiber polishing production line, etc, even covered all the processes of ODN products.Now it has a workshop area of about 27,000 square meters, a technical development team of more than 30 people, and more than 200 workers. Hangzhou Fiberspace Import & Export Co., Ltd is a subsidiary of Yuhua Tech, founded in 2020, possessing an experienced R&D team and Marketing team, Focus on providing cost-effective ODN product solutions for global users and bringing Yuhua's products to the world with the brand "Fiberspace". Welcome to our website： http://www.fiberspace.com.cn

FAQ Q:  Are you a manufacturer or trading company? A: We are an Origin factory. Like we mention in the company introduction ,we have two companies ,Yuhua tech & Fiberspace Import &Export,Fiberspace is a subsidiary of Yuhua tech(has been certified by Alibaba),focus on providing cost-effective ODN product solutions for global users and bringing Yuhua's products to the world with the brand "Fiberspace".
Q: Where is your factory located? How can I visit it? A: Our factory is located in No.9 Huan an road, Lishan Town, Fuyang District, Hangzhou City, Zhejiang Province. 40 Minutes by car from Hangzhou Airport.
Q: How can I get the sample? What's the lead time? A: By DHL/UPS/FedEx express. Samples lead time is 7-14 days.
Q: How does your factory control product quality? A: ISO9001 Certificated, independent quality control team with 20 inspectors in our factory. The third-party certificated and factory audit accepted.  Third-party quality control accepted.
Q: Do you provide ODM/OEM service? A: OEM/ODM is welcome, From the concept to finished goods, we have our own designer, do all in the factory.

Packing&Shipping
Overhead Line Accessories PA1500 FTTH Cable Anchoring Clamps High Tension Plastic Wed Type 12
Overhead Line Accessories PA1500 FTTH Cable Anchoring Clamps High Tension Plastic Wed Type 13
Production Line
Overhead Line Accessories PA1500 FTTH Cable Anchoring Clamps High Tension Plastic Wed Type 14
Overhead Line Accessories PA1500 FTTH Cable Anchoring Clamps High Tension Plastic Wed Type 15
Overhead Line Accessories PA1500 FTTH Cable Anchoring Clamps High Tension Plastic Wed Type 16
Overhead Line Accessories PA1500 FTTH Cable Anchoring Clamps High Tension Plastic Wed Type 17
Overhead Line Accessories PA1500 FTTH Cable Anchoring Clamps High Tension Plastic Wed Type 18
Overhead Line Accessories PA1500 FTTH Cable Anchoring Clamps High Tension Plastic Wed Type 19
Why Choose Us
Overhead Line Accessories PA1500 FTTH Cable Anchoring Clamps High Tension Plastic Wed Type 20
