Galvanized Steel Wire Preformed Dead End for ADSS Cable 9.5 10.5 MM Model Number ADSS

Galvanized Steel Wire Preformed Dead End for ADSS Cable 9.5 10.5 MM Model Number ADSS
Galvanized Steel Wire Preformed Dead End for ADSS Cable 9.5 10.5 MM Model Number ADSS Galvanized Steel Wire Preformed Dead End for ADSS Cable 9.5 10.5 MM Model Number ADSS Galvanized Steel Wire Preformed Dead End for ADSS Cable 9.5 10.5 MM Model Number ADSS Galvanized Steel Wire Preformed Dead End for ADSS Cable 9.5 10.5 MM Model Number ADSS Galvanized Steel Wire Preformed Dead End for ADSS Cable 9.5 10.5 MM Model Number ADSS Galvanized Steel Wire Preformed Dead End for ADSS Cable 9.5 10.5 MM Model Number ADSS

Large Image :  Galvanized Steel Wire Preformed Dead End for ADSS Cable 9.5 10.5 MM Model Number ADSS

Product Details:
Place of Origin: Hangzhou China
Brand Name: Fiberspace
Model Number: Preformed 9.5-10.5
Payment & Shipping Terms:
Minimum Order Quantity: 500 units
Price: $1.80 - $2.00/units
Contact Now

Galvanized Steel Wire Preformed Dead End for ADSS Cable 9.5 10.5 MM Model Number ADSS

Description
Type: Pole Mounted Iron Accessies, Wire Rope Clip Use: Overhead Line Accessories
Warranty Time: 10 Years Usage: ADSS Cable OPGW Cable
Material: Galvanized Steel Wire / Aluminum Clad Steel Wire Application:: Overhead Line Accessories

Products Description

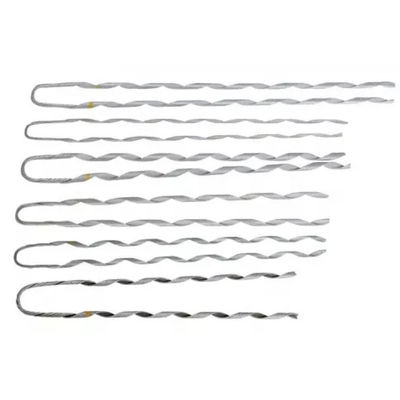

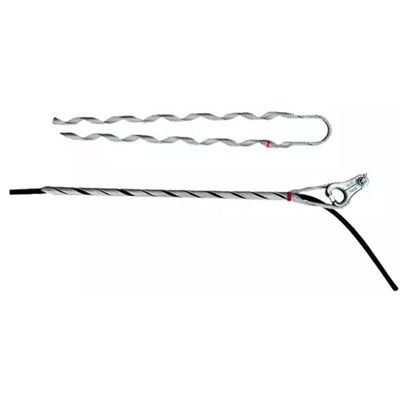

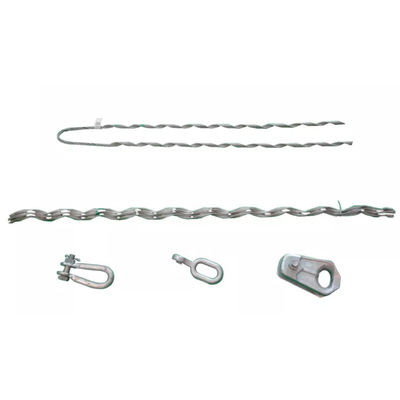

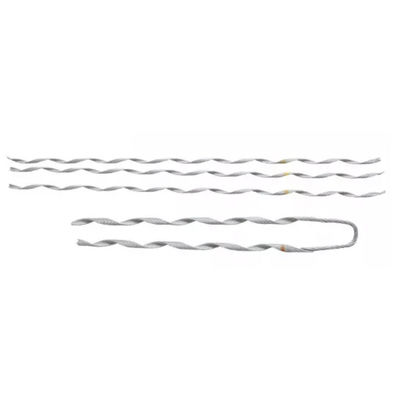

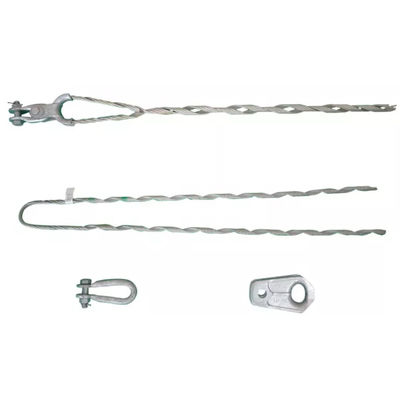

Hot Dip Galvanized Dead End Preformed Series are widely used for the installation of bare conductors or overhead insulated conductors for transmission and distribution lines, the reliability and economic performance of the product is better than the bolt type and hydraulic type tension clamp that widely used in the current circuit. This unique, one-piece dead-end is neat in appearance and free from bolts or high-stress holding devices. It can be made of galvanized steel or aluminium clad steel.

Product Paramenters
Available Dia. of Cable (mm)
Length of Dead-end Component (mm)
Ref.Weight (kg)
Fitting
9.0-9.5
840
0.5
U-7
9.5-10.5
840
0.5
U-7
10.6-11.6
910
0.5
U-7
11.7-12.8
950
0.7
U-7
12.9-14.1
1070
0.8
U-7
14.2-15.6
1150
1.2
U-7
15.7-17.0
1150
1.2
U-7

If you have special needs of customized products, please contact us.

Galvanized Steel Wire Preformed Dead End for ADSS Cable 9.5 10.5 MM Model Number ADSS 0
Galvanized Steel Wire Preformed Dead End for ADSS Cable 9.5 10.5 MM Model Number ADSS 1
Galvanized Steel Wire Preformed Dead End for ADSS Cable 9.5 10.5 MM Model Number ADSS 2
