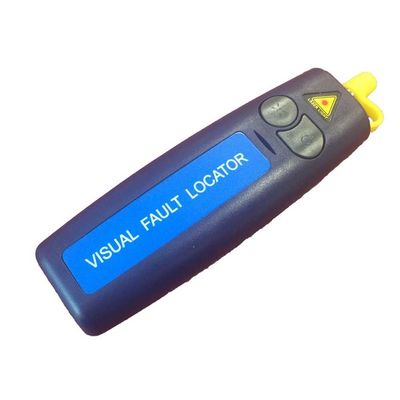

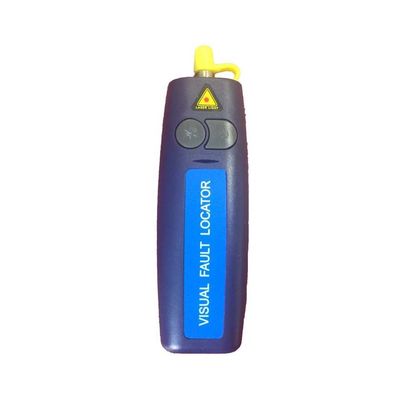

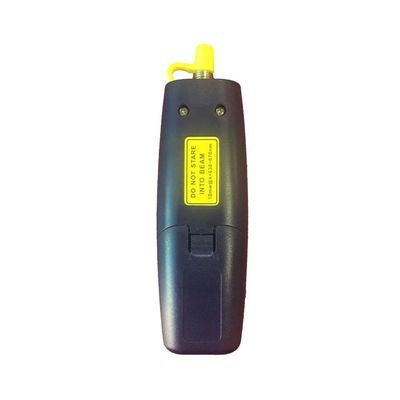

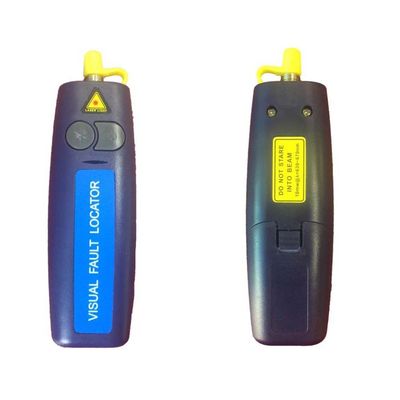

Portable Pen Type Visual Fault Locator 3 for FTTH FTTX Networks SC Type 10km Distance

Portable Pen Type Visual Fault Locator 3 for FTTH FTTX Networks SC Type 10km Distance
Portable Pen Type Visual Fault Locator 3 for FTTH FTTX Networks SC Type 10km Distance Portable Pen Type Visual Fault Locator 3 for FTTH FTTX Networks SC Type 10km Distance Portable Pen Type Visual Fault Locator 3 for FTTH FTTX Networks SC Type 10km Distance Portable Pen Type Visual Fault Locator 3 for FTTH FTTX Networks SC Type 10km Distance Portable Pen Type Visual Fault Locator 3 for FTTH FTTX Networks SC Type 10km Distance Portable Pen Type Visual Fault Locator 3 for FTTH FTTX Networks SC Type 10km Distance

Large Image :  Portable Pen Type Visual Fault Locator 3 for FTTH FTTX Networks SC Type 10km Distance

Product Details:
Place of Origin: Shanghai, China
Brand Name: LinkU
Model Number: LV series
Payment & Shipping Terms:
Minimum Order Quantity: 10 units
Price: $5.30 - $14.40/units
Contact Now

Portable Pen Type Visual Fault Locator 3 for FTTH FTTX Networks SC Type 10km Distance

Description
Type: Visual Fault Locator Use: FTTx
Warranty Time: 3 Years Network: ODN

Products Description
Description: The Visual Fault Locator is usually used to find the broken point in optical fiber/cable, patch cord, and etc. It is a perfect complementary tool for OTDR because of its capability of finding breaks in the dead zone of OTDR.

Features: ❖ Mini size design, portable and durable
❖ Universal connector, ceramic tube replaceable
❖ CW/2Hz modulated output

Product Paramenters
Model #
LV - 01
LV - 10
LV - 30
Laser Launcher Level
CLASS IIIA
CLASS IIIB
CLASS IIIB
Output Power (1)
1mW
10mW
30mW
Detecting Range (2)
About 5km
About 12km
About 15km
Laser Launcher Type
LD
Optical Connector
universal 2.5mm adapter
Output Wavelength
650nm±10nm
Modulation Frequency
CW / 2Hz
Power Supply
2 * AAA Batteries
Working Temperature
-10℃~+50℃; <90%RH
Storage Temperature
-20℃~+70℃; <90%RH
Dimension & Weight
113×34×20 mm (L×W×H) ; 70g
Standard Accessories:
carrying bag, manual
Optional Items

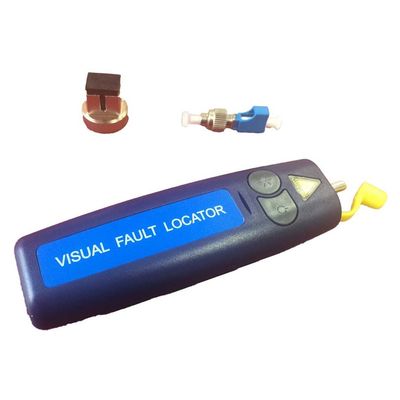

FC Adapter, SC Adapter, FC(Male) to LC(Female) Adapter for LC Connector
Note:
(1) The output power is figured out by multi-mode optical fiber at 23℃±3℃
(2) Detecting range will be different with different fibers.

If you have special needs of customized products, please contact us.
