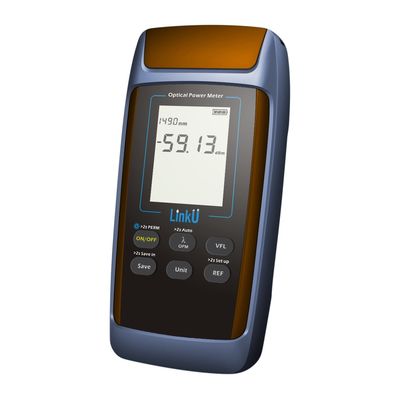

ODN Network Handheld Optical Power Meter with Data Storage and Visual Fault Locator 3

ODN Network Handheld Optical Power Meter with Data Storage and Visual Fault Locator 3
ODN Network Handheld Optical Power Meter with Data Storage and Visual Fault Locator 3 ODN Network Handheld Optical Power Meter with Data Storage and Visual Fault Locator 3 ODN Network Handheld Optical Power Meter with Data Storage and Visual Fault Locator 3 ODN Network Handheld Optical Power Meter with Data Storage and Visual Fault Locator 3 ODN Network Handheld Optical Power Meter with Data Storage and Visual Fault Locator 3 ODN Network Handheld Optical Power Meter with Data Storage and Visual Fault Locator 3

Large Image :  ODN Network Handheld Optical Power Meter with Data Storage and Visual Fault Locator 3

Product Details:
Place of Origin: Shanghai, China
Brand Name: LinkU
Model Number: LP-3 series
Payment & Shipping Terms:
Minimum Order Quantity: 10 units
Price: $27.60 - $36.60/units
Contact Now

ODN Network Handheld Optical Power Meter with Data Storage and Visual Fault Locator 3

Description
Type: Optical Power Meter Use: FTTx
Warranty Time: 3 Years Network: ODN

Products Description
Description: Optical Power Meter is used to test optical power, loss, continuity and faults on all types of fiber optic systems. LP-3 series OPM provides high accuracy and simplicity of test. Working with Linku’s LS-3 series OLS, it can automatically recognize the wavelength to be tested to reduce the possibility of wrong operation.

Features: ❖ Auto-wavelengths recognition（working with LS-3 series OLS）
❖ Auto power-off , battery indicator
❖ LCD display with back-light
❖ Reference value setting
❖ Up to 1000 testing results storage
❖ USB port for data transmission (LP-3TV&3CV)
❖ Build-in 10mW VFL module(LP-3TV&3CV)
❖ Up to 150 hours continuous operation (Type).

Product Paramenters
Model #
LP-3T
LP-3C
LP-3TV
LP-3CV
Measuring Range
-70 to +10dBm
-50 to +26dBm
-70 to +10dBm
-50 to +26dBm
Resolution
0.01dB(>-60dBm)
0.01dB(>-40dBm)
0.01dB(>-60dBm)
0.01dB(>-40dBm)
VFL Module
N/A
N/A
650nm, 10mW, CW&.2Hz
650nm, 10mW, CW&.2Hz
USB port for data transmission
N/A
N/A
Available
Available
Detector Type
InGaAs
Accuracy*
±0.2dB
Connector
FC/PC &. 2.5mm universal
Modulation Freq. Detection
270Hz, 1KHz, 2KHz
Operating/ Storage Temperature
-10℃ ~ 50℃ / -20℃ ~ 70℃
Power supply
3 * AA batteries; AC/DC adaptor
Dimension (mm)
170*82*35 (L*W*H)
Standard Accessories:
FC/PC adapter, carrying bag, Manual
Optional Items
SC Adapter, ST Adapter, FC to LC Hybrid Adapter, AC/DC adapter

If you have special needs of customized products, please contact us.
